ENGINE, COOLING SYSTEM AND WATER PUMP for POLARIS SPORTSMAN TOURING 1000 48" 49S from 2023

ENGINE, COOLING SYSTEM AND WATER PUMP- A23SYY95AD (C1021395)

ENGINE, COOLING SYSTEM AND WATER PUMP

-

ASM-STATOR CVR W/WATERPUMP

1208906

9999999

Not Available

1

COVER-STATOR W/WATERPMP

5144073

$734,99 Unit Price incl. VAT

2

SCR-HXFL-M6X1.0X25 10.9 SPC

7527861

$5,24 Unit Price incl. VAT

3

COVER-WATERPMP W/BP

5144074

$125,99 Unit Price incl. VAT

4

WATEPRUMP COVER GASKET

5412954

$57,74 Unit Price incl. VAT

5

SCR-M6X1.0X12-HXHD

7527860

$5,24 Unit Price incl. VAT

6

WASHER-FLAT M6

7558730

$7,34 Unit Price incl. VAT

7

IMPELLER-WATERPMP CAST 60MM

5639192

$89,24 Unit Price incl. VAT

8

WATER PUMP SEAL; 16 MM

3610136

3610450

Not Available

9

O-RING .864 X 1.00 X .07

5412955

$13,64 Unit Price incl. VAT

9

WATER TRANSFER TUBE

5453707

$157,49 Unit Price incl. VAT

10

THERMOSTAT COVER

5632606

$83,99 Unit Price incl. VAT

11

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

12

180 DEGREE THERMOSTAT

7052561

$83,99 Unit Price incl. VAT

13

COUPLER-SPLINE INT WP BEARING

5140079

$62,99 Unit Price incl. VAT

14

O-RING-12.37X2.62 VITON

5417753

$3,14 Unit Price incl. VAT

15

BEARING WITH SHAFT; WATERPUMP OPC

3514921

$88,19 Unit Price incl. VAT

16

FITTING-COOLANT 3/8

7055563

$18,89 Unit Price incl. VAT

17

THERMOSTAT SEAL

5413948

$14,69 Unit Price incl. VAT

18

TUBING-NYLON 5MMX100MM BLK

8360209

$27,29 Unit Price incl. VAT

19

FITTING-6 MM;BRASS

7055562

$25,19 Unit Price incl. VAT

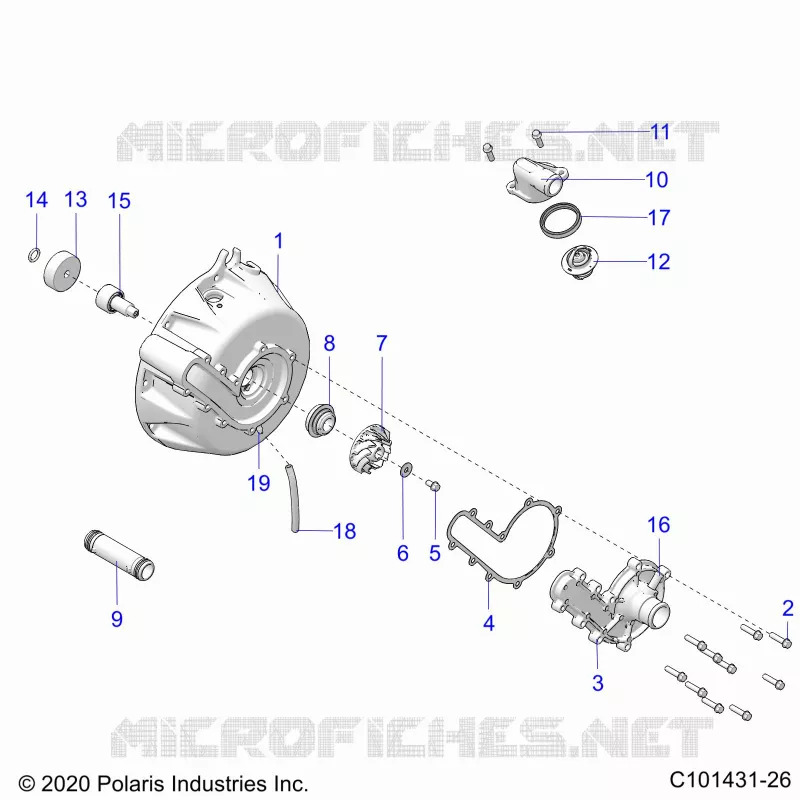

Find the detailed ENGINE, COOLING SYSTEM AND WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
