1
CLIP-SPRING
1930562
Not Available
2
PIN PAD RETAINING
1930563
Not Available
3
SWITCH-STOPLIGHT
4110046
9999999
Not Available
4
CALIPER ASM BRAKE Substituted by 1930556
1930566
Not Available
5
SCREW-BLEEDER
1930564
Not Available
6
SEAL-PISTON
1930567
9999999
Not Available
7
PISTON
1930568
Not Available
9
ELBOW
7052058
9999999
Not Available
10
LINE BRAKE
1930692
9999999
Not Available
11
BRAKE PAD; INDIVIDUAL
1930569
9999999
Not Available
12
CASTING-CARRIER
1930570
Not Available
13
NUT
1930558
Not Available
14
BUSHING
1930559
9999999
Not Available
15
BRACKET (Sport Trail 400)
1930560
Not Available
16
BOLT-BRIDGE
1930561
Not Available
17
CALIPER ASM; BRAKE
1930556
9999999
Not Available
18
JACKSHAFT ASM. (Incl. 16)
1332135067
Not Available
19
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
20
BOLT
7512240
9999999
Not Available
21
WASHER SPLIT LOCK
7552804
9999999
Not Available
22
CHAINCASE
5130795
Not Available
23
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
24
NUT
7542404
$3,14 Unit Price incl. VAT
25
BEARING CHAINCASE #6205
3514306
9999999
Not Available
26
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
27
SPACER SPROCKET
5010270
9999999
Not Available
28
SPKT; 20T
3221053
9999999
Not Available
28
SPROCKET 21 T
3221035
9999999
Not Available
29
CHAIN 66 PITCH
3224024
9999999
Not Available
30
TIGHTENER ASM.
1332078
9999999
Not Available
31
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
32
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
33
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
34
CHAINCASE GASKET
5410277
9999999
Not Available
35
COVER CHAINCASE
5222579
Not Available
36
BOLT
7512246
9999999
Not Available
37
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
38
BOLT; S.S.(10)
7512293
9999999
Not Available
39
SCREW
7511909
9999999
Not Available
40
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
41
NUT-WELL
7541918
9999999
Not Available
42
STAND-OFF C/C COVER
5333033
Not Available
43
O RING
5410565
9999999
Not Available
44
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
45
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
46
SPROCKET 39 T11W
3222034
9999999
Not Available
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
CAP STUD COVER
5020569
9999999
Not Available
49
PLUG; MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
50
SCREW; CARRIAGE
7515477
9999999
Not Available

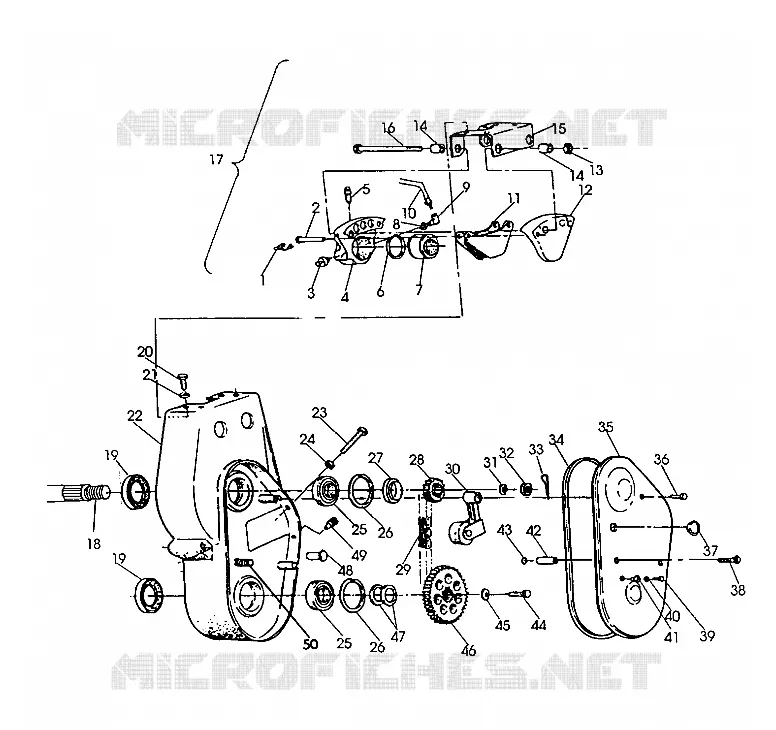

Find the detailed BRAKE CHAINCASE 500 AND 500 CLASSIC (4921252125027A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
