Engine displacement
500
2
Year
1992
3
Trim
500 - 0920764
4
Parts Catalog
NOSEPAN 500 and 500 Classic (4921252125009A)
5
Parts Diagram
Parts Catalog
SEAT/GAS TANK ASSEMBLY 500 CLASSIC (4921252125007A)
by
HOOD ASSEMBLY 500 AND 500 CLASSIC (4921252125011A)

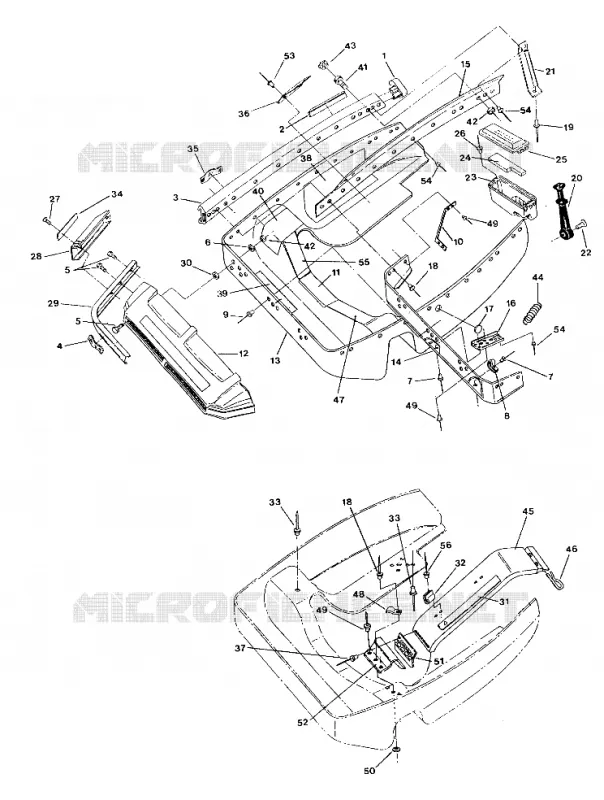

NOSEPAN 500 and 500 Classic (4921252125009A)
1
1
2
3
3
3
3
4
4
4
4
5
5
6
7
7
8
9
10
11
12
12
12
12
13
14
15
15
15
15
16
17
18
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
34
35
35
35
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
49
49
50
51
52
53
55
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
1
1
2
3
3
3
3
4
4
4
4
5
5
6
7
7
8
9
10
11
12
12
12
12
13
14
15
15
15
15
16
17
18
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
34
35
35
35
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
49
49
50
51
52
53
55
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
CAP BUMPER RH
5431084
9999999
Not Available
1
CAPBUMPERLH
5431083
9999999
Not Available
2
REFLECTOR AMBER
2670071
9999999
Not Available
3
BUMPERLH EXT.
2670114
9999999
Not Available
3
BUMPERRH EXT.
2670115
9999999
Not Available
4
DECAL (30##)F.BUMP#CLASSIC# [No Longer Available] (Classic)
7073352
Not Available
4
DECAL (30##)F.BUMP 500/SKS [No Longer Available]
7073180
Not Available
5
SCREW
7512279
$1,56 Unit Price incl. VAT
6
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
7
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
8
CLAMP RETAINER
7080372
$7,34 Unit Price incl. VAT
9
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
10
BRACE PAN CORNER
5222254
9999999
Not Available
11
TAPE FOIL PAN#5
5810495
9999999
Not Available
12
CONE NOSE BLUE (500 Classic Only) Blue
54309311003
Not Available
12
CONE NOSE BLACK
5430931070
Not Available
13
NOSEPAN;BLK
5410564067
Not Available
14
BRACE HINGE
5220951
9999999
Not Available
15
GUIDE HOOD RH
5510134
9999999
Not Available
15
GUIDE-HOOD LH
5510133
9999999
Not Available
16
BRACE PAN
5223996
9999999
Not Available
17
PLUIG
5410344
$10,49 Unit Price incl. VAT
18
POP RIVET
7621402
$2,09 Unit Price incl. VAT
19
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
20
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
21
PAN BRACE; RIGHT
5220523067
Not Available
21
PAN BRACE LEFT
5220522067
Not Available
22
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
23
BOX-TOOL
5430716
9999999
Not Available
24
FOAM - TOOL BOX
5810266
9999999
Not Available
25
COVER TOOL BOX
5430719
9999999
Not Available
26
RIVET(50)
7621332
$2,09 Unit Price incl. VAT
27
SCREW
7511863
9999999
Not Available
28
CAP BUMPER
5430930
9999999
Not Available
29
BUMPER FRONT
5224333
9999999
Not Available
30
CAP; TOWER
5020517
9999999
Not Available
31
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
32
BELT RETAINER CLIP
5222769
$15,74 Unit Price incl. VAT
34
EMBLEM POLARIS SILVER
5430979092
Not Available
35
DECAL (44##)SIDE#CLASSIC# [No Longer Available]
7073354
Not Available
35
DECAL SIDE EXT.#500/SKS# [No Longer Available]
7073181
Not Available
36
GUIDE HOOD
5220984
Not Available
37
POP RIVET
7621330
$2,09 Unit Price incl. VAT
38
TAPE FOIL(11X12)
5810465
9999999
Not Available
39
TAPE FOIL (5X12)
5810466
Not Available
40
TAPE FOIL PAN#6
5810496
9999999
Not Available
41
BOLT
7512296
9999999
Not Available
42
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
43
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
44
SPRING HOOD CABLE
7041202
9999999
Not Available
45
GUARD CLUTCH
5230118
5240965
Not Available
46
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
47
TAPE FOIL PAN#4
5810494
9999999
Not Available
48
CLIP WIRING
4020035
9999999
Not Available
49
RIVET
7621452
9999999
Not Available
50
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
51
HINGE
5210728
9999999
Not Available
52
BRACKET; HINGE
5220406
5241437
Not Available
53
RIVET
7621318
9999999
Not Available
55
TAPE FOIL PAN#3
5810493
9999999
Not Available
56
DECAL #POLARIS# [No Longer Available]
7073303
Not Available
56
DECAL RH N#CONE#CL.# [No Longer Available]
7073301
Not Available
56
LOGO E/S SILVER (500 Classic Only)
5431073
Not Available
56
DECAL CTR.N#CONE#CL.# [No Longer Available]
7073298
Not Available
56
RIVET
7621429
$2,09 Unit Price incl. VAT
56
DECAL FR.#CLASSIC# [No Longer Available]
7073302
Not Available
56
DECAL LH N#CONE#CL.# [No Longer Available]
7073299
Not Available
