ENGINE MOUNTING for POLARIS SPORTSMAN 6X6 - A00CL50AA from 2000

ENGINE MOUNTING

1

NUT

7547108

$9,44 Unit Price incl. VAT

2

WASHER

7555801

$7,34 Unit Price incl. VAT

3

CABLE GND-ENGINE

4010132

9999999

Not Available

4

BOLT

7512232

$2,09 Unit Price incl. VAT

5

MOUNT RUBBER TOP

3110044

3024012

$83,99 Unit Price incl. VAT

6

BRKT ENG.MT TOP BLK

5242674067

Not Available

7

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

8

BOLT

7512315

$9,44 Unit Price incl. VAT

9

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

10

FUEL LINE; 600 CM

8450040600

Not Available

11

FUEL LINE; 1/4 ID

84500031525

Not Available

12

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

13

SCREW AND WASHER

3084205

9999999

Not Available

14

MOUNT; RUBBER

3110032

9999999

Not Available

15

BRKT CARB MOUNT BLK

5243803067

Not Available

16

WASHER

7552605

9999999

Not Available

17

HEX NUT

7542105

$7,34 Unit Price incl. VAT

18

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

19

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

20

SHEATH/FOIL LAM 58CM.

845008058

Not Available

21

MOUNT ENGINE REAR BLK

1012883067

Not Available

22

NUT-3/8-16 FLG LOCK-Y

7547089

9999999

Not Available

23

MOUNT RUBBER FRONT

3110046

9999999

Not Available

24

SCREW

7515417

9999999

Not Available

25

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

26

CLUTCH INTAKE BOOT

5410421

9999999

Not Available

27

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

28

BUSHING

5430261

$13,64 Unit Price incl. VAT

29

WASHER

5210748

$7,34 Unit Price incl. VAT

30

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

31

BOLT

7512566

9999999

Not Available

32

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

33

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

34

MOUNT FR.ENGINE BLK.

1040688067

Not Available

35

SCREW

7515398

9999999

Not Available

36

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

37

MOUNT MOTOR

3110067

9999999

Not Available

38

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

39

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

40

BOLT

7515438

$9,44 Unit Price incl. VAT

41

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

42

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

43

MANIFOLD BLK.

1260994029

Not Available

44

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

45

ENG.(S.B.)EH50PLE-01

3085556

9990000

Not Available

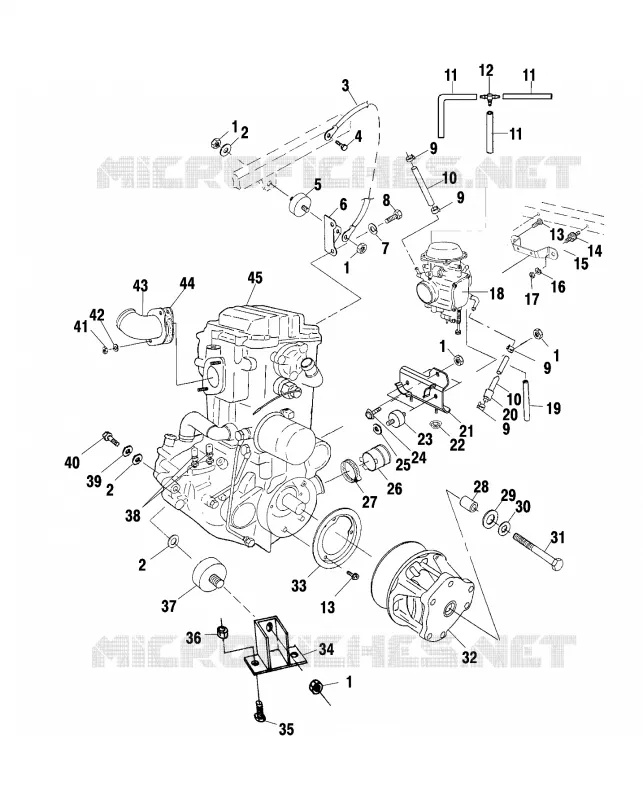

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
