COOLING SYSTEM for POLARIS SPORTSMAN 6X6 - A00CL50AA from 2000

COOLING SYSTEM

1

HOSE CLAMP

7080614

$13,64 Unit Price incl. VAT

2

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

3

REMOTE COOLANT FILTER

5433364

$73,49 Unit Price incl. VAT

4

BRKT REMOTE COOLANT FILL

5243505067

Not Available

5

RIVET INTERLOCK

7661638

$2,09 Unit Price incl. VAT

6

FLEXGUARD

5433707

9999999

Not Available

7

ENGINE HOSE; UPPER

5411811

9999999

Not Available

8

CLAMP-ROTO SPRING 1"

7080827

9999999

Not Available

9

SCREW

7512024

$9,44 Unit Price incl. VAT

10

FILLER NECK HOSE

5411632

9999999

Not Available

11

CLAMP-ROTO CLIP

7080826

9999999

Not Available

12

SCREW

7517659

9999999

Not Available

13

FAN AND MOTOR ASSEMBLY; SPAL

2410123

$289,79 Unit Price incl. VAT

14

CLIP U

7670111

9999999

Not Available

15

NUTSERT HEX

7547069

$7,34 Unit Price incl. VAT

16

MOUNT; RUBBER

3110032

9999999

Not Available

17

MOUNT SPACER

5020572

9999999

Not Available

18

SHROUD-FAN

5433059

9999999

Not Available

19

THERMAL HARNESS SENSOR

4010161

9999999

Not Available

20

RADIATOR

1240045

9999999

Not Available

21

WASHER

7552605

9999999

Not Available

22

BOLT

7512113

$7,34 Unit Price incl. VAT

23

DESC NOT_AVAILABLE

5243506

Not Available

24

O-RING

5410607

9999999

Not Available

25

O-Ring

5411633

Not Available

25

VALVE-PLASTIC DRAIN

7052244

9999999

Not Available

26

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

27

RADIATOR BRACKET; LOWER; GS BLK

5243503067

Not Available

28

SCREW

7517386

$2,09 Unit Price incl. VAT

29

HOSE LOWER ENGINE

5411694

9999999

Not Available

30

GUARD-HOSE 12

5521511

9999999

Not Available

31

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

32

GASKET

5810279

$4,19 Unit Price incl. VAT

33

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

34

SURGE TANK

5433410

9999999

Not Available

35

FUEL LINE; 1/4 ID

84500031525

Not Available

36

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

37

SCREW

7512084

$2,09 Unit Price incl. VAT

38

BREAKER CIRCUT 10A FAN

4010369

9999999

Not Available

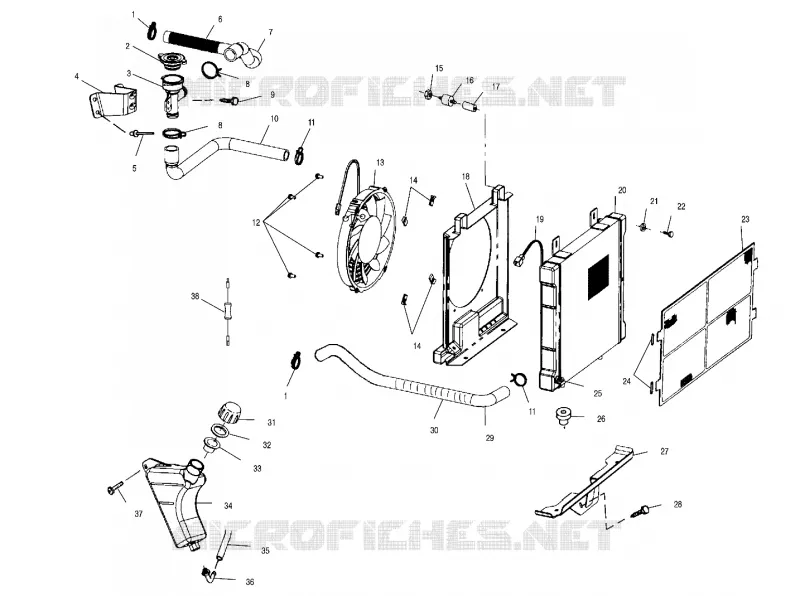

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
