1
Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 RMK - A02CD50AB
4
Parts Catalog
AIR BOX
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
ENGINE MOUNTING
AIR BOX
1
SCREW
7517317
$6,29 Unit Price incl. VAT
2
DUCT INLET
5432859
9999999
Not Available
3
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
4
AIRBOX COVER
5432868
9999999
Not Available
5
SEAL COVER
5811482
5813949
$52,49 Unit Price incl. VAT
6
SCREW
7515180
9999999
Not Available
7
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
8
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
9
LINE BREATHER 3/8 ID.
8450073600
Not Available
10
BREATHER FILTER IN LINE
2530029
9999999
Not Available
11
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
12
BREATHER HOSE; NITRILE
5411921
9999999
Not Available
13
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
14
BOOT CARBURETOR
5411540
9999999
Not Available
15
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
16
DUCT CARBURETOR INLET
5432473
9999999
Not Available
17
CARBURETOR INLUET DUCT GASKET
5830128
9999999
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
AIR BOX
5433678
9999999
Not Available
20
SPACER
7556091
$7,34 Unit Price incl. VAT
21
FOIL
5811650
9999999
Not Available
22
PLUG TRAP
5432377
9999999
Not Available
23
FUEL LINE
8450059150
Not Available
24
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
25
CLIP
5242044
$17,84 Unit Price incl. VAT
26
COLLAR CARBURETOR INLET
5432601
9999999
Not Available
27
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
28
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT

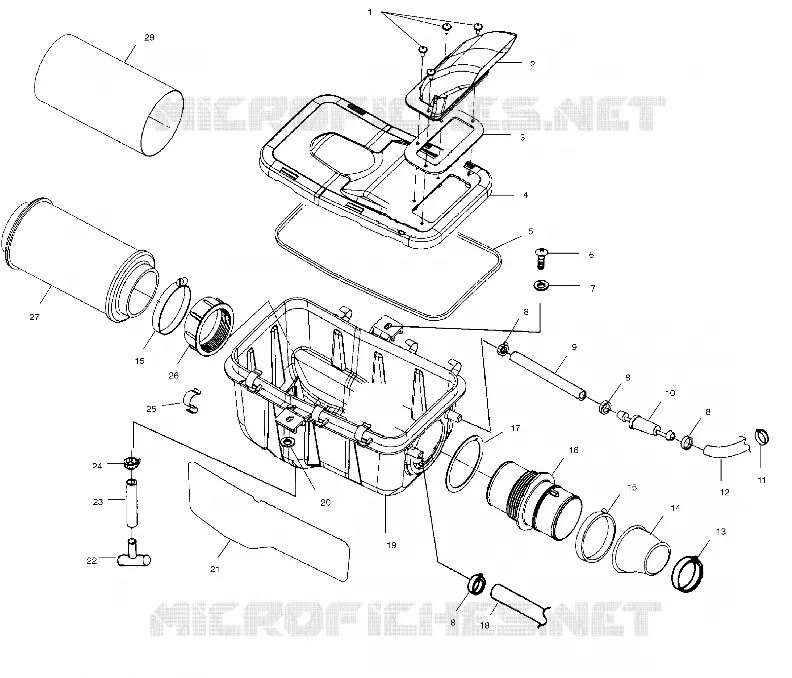

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
