Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 RMK - A02CD50AB
4
Parts Catalog
FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CONTROLS
FUEL TANK AND CARBURETOR MOUNTING
1
CAP GAS TANK
5433687
5450389
$36,74 Unit Price incl. VAT
2
GASKET
5812123
$10,49 Unit Price incl. VAT
3
TANK ASM;FUEL
2520143
9999999
Not Available
4
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
5
BRKT CARB.MT.
5240609067
Not Available
6
SCREW AND WASHER
3084205
9999999
Not Available
7
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
8
CARBURETOR MOUNT; RUBBER
3021086
9999999
Not Available
9
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
10
WASHER
7552605
9999999
Not Available
11
HEX NUT
7542105
$7,34 Unit Price incl. VAT
12
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
14
BRKT-CARB SUPPORTBLK
5245672067
Not Available
15
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
16
MOUNT-425/500 CARBBLK
5245673067
Not Available
17
SHIELD-SPLASH RH BLK
5245533067
Not Available
18
SCREW
7517386
$2,09 Unit Price incl. VAT
19
PAD
5810317
9999999
Not Available
20
SCREW
7517505
$3,14 Unit Price incl. VAT
21
FUEL VALVE KNOB
5432559
9999999
Not Available
22
FUEL VALVE NUT
5432733
9999999
Not Available
23
3-WAY VALVE
7052161
$83,99 Unit Price incl. VAT
24
FUEL LINE; 600 CM
8450040600
Not Available
25
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
26
RIVET
7661637
$2,09 Unit Price incl. VAT
27
BRKT FUELVALVE BLK
5240577067
Not Available
28
FITTING FUEL OUT MAIN 4 Y
7052150
$52,49 Unit Price incl. VAT
29
FITTING FUEL OUT RES. Z
7052149
9999999
Not Available
30
SPLASH SHIELD LEFT MEDIUM GLOSS BLACK
5245394067
Not Available
31
BOLT
7512277
$9,44 Unit Price incl. VAT
32
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
33
BOLT
7512276
$9,44 Unit Price incl. VAT
34
TANK VENT
5431053
9999999
Not Available
35
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
35
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
36
FOAMSEAL25"
5811942
9999999
Not Available

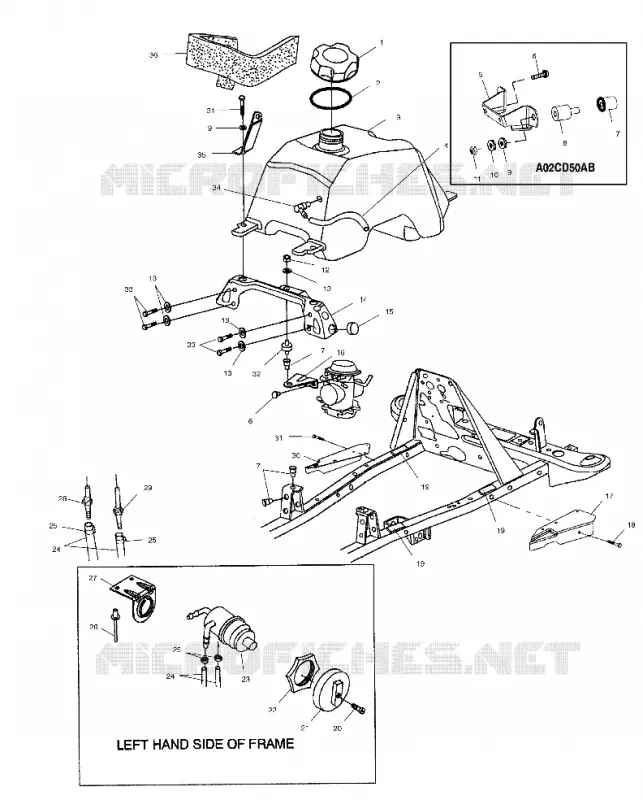

Find the detailed FUEL TANK AND CARBURETOR MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
