1
Engine displacement
600
2
Year
2016
3
Trim
600 RMK 144 / 155
4
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE SYSTEM, 144 INCH
by
MULTI FUNCTION GAUGE
DRIVE TRAIN, CLUTCH, PRIMARY
14
15
16
17
17
17
17
18
19
20
21
22
23
1
DRIVE CLUTCH ASSEMBLY; BASIC; BT
1323078
$960,74 Unit Price incl. VAT
1
BASIC DRIVE CLUTCH ASSEMBLY
1323081
$960,74 Unit Price incl. VAT
2
SCR-1/4-20X2 1/4 HX WH GR5-Y
7518349
$2,09 Unit Price incl. VAT
3
BEARING COVER
3576516
$62,99 Unit Price incl. VAT
4
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
5
SPRING DRIVE CLUTCH 800 HP 140/33
7043829
$115,49 Unit Price incl. VAT
5
CLUTCH SPRING; BLACK/GREEN
7042083
$115,49 Unit Price incl. VAT
6
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
7
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
8
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
9
ROLLER PIN; 1 IN
5133079
$11,54 Unit Price incl. VAT
10
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
11
SNOWMOBILE CLUTCH WEIGHT 64 G(3)
1321585
$73,49 Unit Price incl. VAT
11
SNOWMOBILE CLUTCH WEIGHT 58 G(3)
1321588
$73,49 Unit Price incl. VAT
12
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
13
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
14
SLEEVE BEARING
3514641
$34,64 Unit Price incl. VAT
15
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
16
SPACER-CLUTCH DRIVE;PM
5138705
$26,24 Unit Price incl. VAT
17
SPACER .020
5210752
$3,14 Unit Price incl. VAT
17
SPACER .025
5242981
$7,34 Unit Price incl. VAT
17
SPACER .050
5210754
$6,29 Unit Price incl. VAT
17
SPACER .032
5210753
$4,19 Unit Price incl. VAT
18
JAM NUT
5020425
$41,99 Unit Price incl. VAT
19
BOLT M14 THREAD X1.5 PITCHX215MM LONG
7518412
$52,49 Unit Price incl. VAT
20
WSHR-0.5625X1.1X0.109 ZY3 HRD
7556702
$9,44 Unit Price incl. VAT
21
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT
22
STARTER RING GEAR
2870002
$209,99 Unit Price incl. VAT
23
BOLT
7515351
$7,34 Unit Price incl. VAT

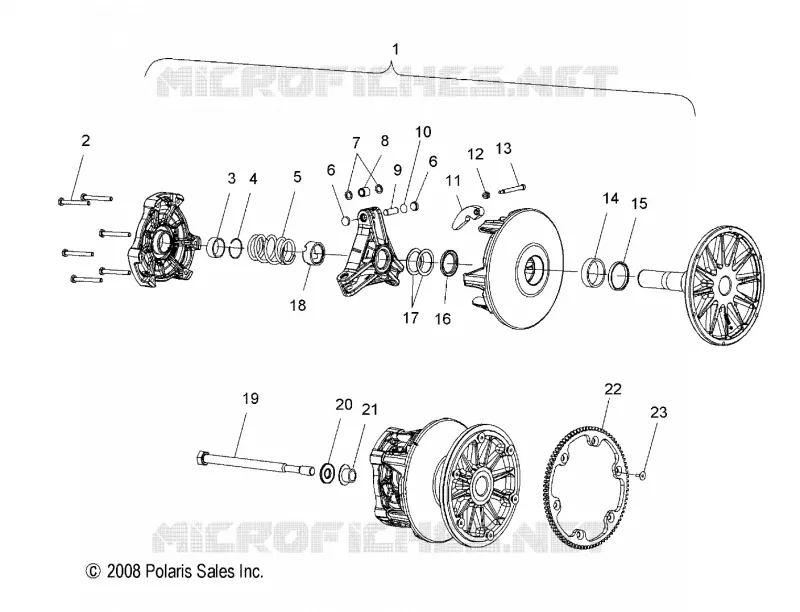

Find the detailed DRIVE TRAIN, CLUTCH, PRIMARY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
