SUSPENSION, RAIL MOUNTING (155 INCH) for POLARIS 600 RMK 144 / 155 from 2016

CHASSIS, CLUTCH GUARD AND FOOTRESTS

DRIVE TRAIN, CLUTCH, SECONDARY

SUSPENSION, RAIL MOUNTING (155 INCH)

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

RAIL TIP; CAP

5438374

$36,74 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

6

WASHER-M5.3X14X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

8

HOLLOW BUMPER; TALL

5414323

9999999

Not Available

9

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

10

ASM-RAIL BSCCOILOVER155 LH NAT

1543301309

Not Available

10

ASM-RAIL BSCCOILOVER155 RH NAT

1543302309

Not Available

11

BUMPER-JOUNCE REAR;COIL-OVER

5521812

$13,64 Unit Price incl. VAT

12

HEX FLANGE SCREW 10 MM X 1.5 MM X 100 MM

7519167

$17,84 Unit Price incl. VAT

13

NUT

7547017

$10,49 Unit Price incl. VAT

14

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

15

RIVET

7621501

$4,19 Unit Price incl. VAT

16

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

17

WASHER-SPRING CON 5/16X.118ZOD

7556489

$2,51 Unit Price incl. VAT

18

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

18

WHEEL ASSEMBLY; GLOSS BLACK

1590434070

Not Available

18

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

19

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$6,29 Unit Price incl. VAT

20

WHEEL MOUNT BLOCK

5631446

$47,24 Unit Price incl. VAT

21

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

22

SLIDER .45/74 SERVICE WHITE

5521633

5521633-309

$73,49 Unit Price incl. VAT

23

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

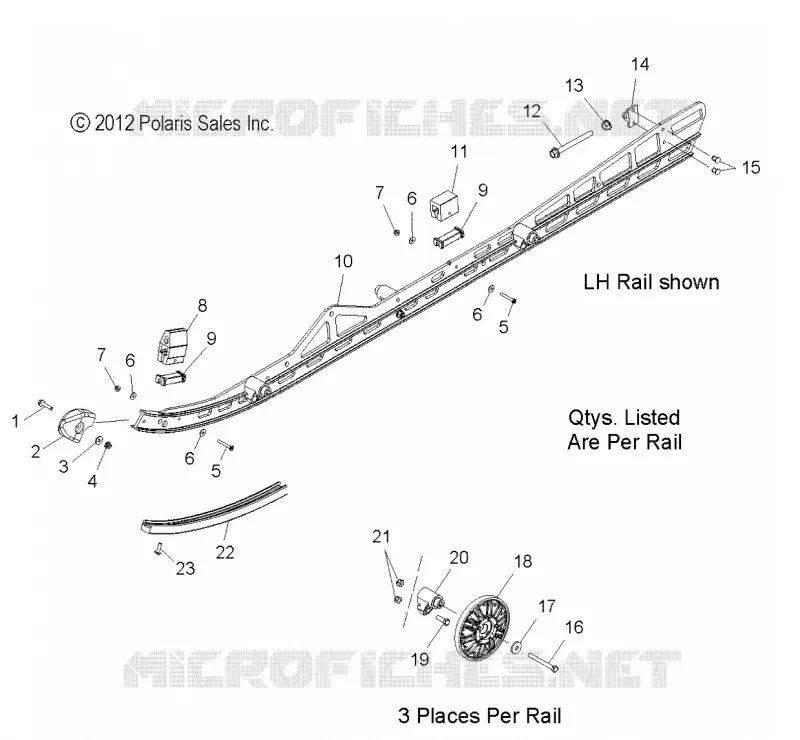

Find the detailed SUSPENSION, RAIL MOUNTING (155 INCH) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
