1
Engine displacement
400
2
Year
1994
3
Trim
400L 4X4 - W948140
4
Parts Catalog
EXHAUST SYSTEM 4X4 400L W948140 (4926772677A010)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 4X4 400L W948140 (4926772677A009)
by
FRONT DRIVE ASSEMBLY 4X4 400L W948140 (4926772677B001)
EXHAUST SYSTEM 4X4 400L W948140 (4926772677A010)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
1
2
3
4
5
5
6
7
8
9
10
11
11
11
12
13
13
14
16
16
17
17
18
19
20
21
22
23
24
25
26
27
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
BUSHING
5010192
$12,59 Unit Price incl. VAT
4
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
5
BRKT RH SUPPORT RACK
5220901067
Not Available
6
SUPPORT FENDER; REAR; MEDIUM GLOSS BLACK
5220902067
Not Available
7
MOUNT MOTOR
3110030
9999999
Not Available
8
NUT JAM
7542432
$7,34 Unit Price incl. VAT
9
WASHER RUBBER
5410436
9999999
Not Available
10
BOLT
7515316
$4,19 Unit Price incl. VAT
11
BOLT
7512666
$4,19 Unit Price incl. VAT
12
PLUG CLEANOUT
7052083
9999999
Not Available
13
BOLT BLACK
7512282
9999999
Not Available
14
SCREW(10)
7515140
$6,29 Unit Price incl. VAT
15
NUT; RETAINER(10)
7542141
9999999
Not Available
16
HEATSHIELD ASM. (Incl. 16)
1260620
Not Available
17
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
18
SPEED NUT
7670060
9999999
Not Available
19
RIVET
7621462
$2,09 Unit Price incl. VAT
20
BRKT BLK HEATSHIELD
5240179067
Not Available
21
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
22
HEADPIPE WELD.
1260549029
Not Available
23
SPRING
7042029
$10,49 Unit Price incl. VAT
24
EXHAUST WELDBLK(350)
1260588029
Not Available
25
LOCK WASHER
3080530
9999999
Not Available
26
NUT
3080285
9999999
Not Available
27
MANIFOLD BLK.
1260543029
Not Available

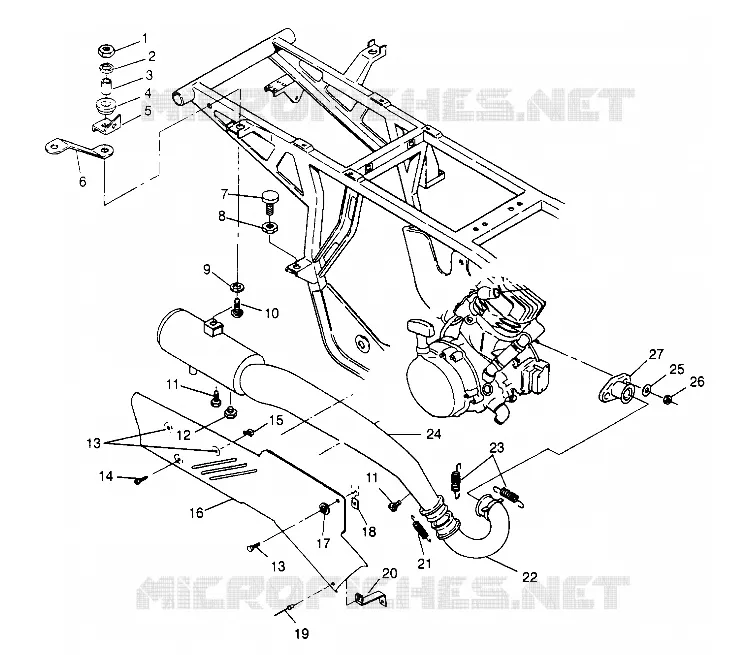

Find the detailed EXHAUST SYSTEM 4X4 400L W948140 (4926772677A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
