1
Engine displacement
400
2
Year
1994
3
Trim
400L 4X4 - W948140
4
Parts Catalog
FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004)
5
Parts Diagram
Parts Catalog
CV JOINT 4X4 400L W948140 (4926772677B003)
by
CONTROLS

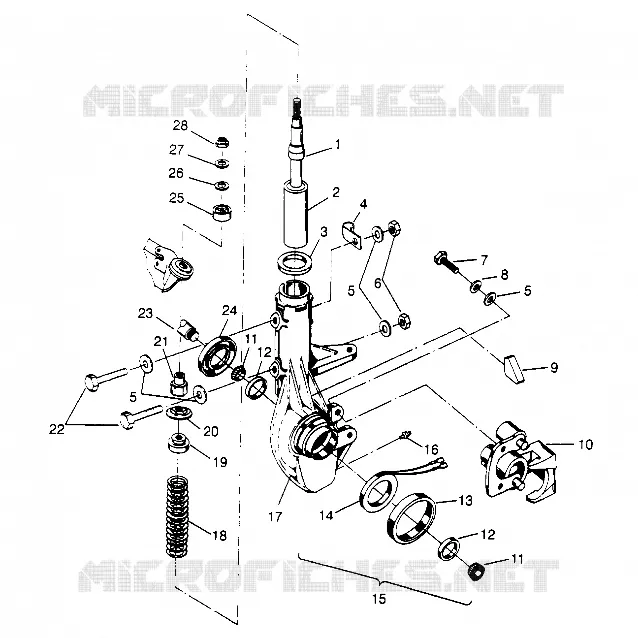

FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004)
1
2
3
4
5
5
5
6
7
8
9
10
11
11
12
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
1
BUMPER RUBBER
5410429
9999999
Not Available
2
STRUT; FRONT
7041304
9999999
Not Available
3
WASHER
5211115
$7,34 Unit Price incl. VAT
4
CLAMP
7080347
7080573
$13,64 Unit Price incl. VAT
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
NUT FLEX-LOC
7542303
9999999
Not Available
7
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
8
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
9
RETAINER WIRE STRUT CAST
5810439
9999999
Not Available
10
CALIPER ASMRH BRAKE
1910075
9999999
Not Available
11
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
12
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
13
HUBSTRUT SEAL SLEEVE
5222193
$120,74 Unit Price incl. VAT
14
MAGNETIC COIL
4170003
9999999
Not Available
15
HUBSTRUT ASM LH (Incl. 6 18 20 23 24)
2200316
Not Available
15
HUBSTRUT ASM RH (Incl. 6 18 20 23 24)
2200317
Not Available
16
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
17
SUPPORT RH HUBSTRUT
5131017
9999999
Not Available
17
SUPPORT;LH;HUBSTRUT
5131016
2200601
Not Available
18
SPRING STRUT
7041161067
Not Available
19
RETAINER SPRING TOP
5220602
9999999
Not Available
20
PIVOT BALL;BOTTOM
5430807
5432871
$19,94 Unit Price incl. VAT
21
THREADED SPACER
5130668
$52,49 Unit Price incl. VAT
22
BOLT
7515339
$9,44 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
HUB STRUT SEAL
3610028
$57,74 Unit Price incl. VAT
25
PIVOT BALL; TOP
5430806
5432872
$19,94 Unit Price incl. VAT
26
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
27
WASHER
7555749
$2,09 Unit Price incl. VAT
28
FLEX LOC NUT
7542507
9999999
Not Available

Find the detailed FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
