1
Engine displacement
500
2
Year
1999
3
Trim
INTL BIG BOSS 500 6X6 - A99AE50DA
4
Parts Catalog
REAR WHEEL DRIVE
5
Parts Diagram
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING
by
GEAR SELECTOR
REAR WHEEL DRIVE
1
WASHER
7555764
9999999
Not Available
2
JAM NUT
5020468
9999999
Not Available
3
BOLT
7512673
$5,76 Unit Price incl. VAT
4
HUB KIT
2200341
9999999
Not Available
5
PUSHNUT BOLT
7670081
9999999
Not Available
6
TIRE-25X11-10__MB0
5410948
9999999
Not Available
7
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
8
WASHER
7555745
9999999
Not Available
9
CASTLE NUT
7543005
9999999
Not Available
10
CONNECTOR LINK
3225024
9999999
Not Available
11
NUT
7542714
9999999
Not Available
12
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
13
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
14
COVER DUST HUB
5411164
5413427
$52,49 Unit Price incl. VAT
15
DRIVECHAIN ASSEMBLY
3224055
$435,74 Unit Price incl. VAT
16
BOLT
7515488
9999999
Not Available
17
SPROCKET; 30 TOOTH
3222047
9999999
Not Available
18
HUB SPKT EXT.BLK. Substituted by 1380026
1380026067
Not Available
19
O RING 1 5/16(10)
5410415
9999999
Not Available
20
AXLE SEAL; REAR
3610013
9999999
Not Available
21
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
22
TUBE BEARING SPACER
5010204
9999999
Not Available
23
HOUSING AXLE
5130663
9999999
Not Available
24
SPACER BEARING
5010206
9999999
Not Available
25
SNAP RING
7710405
9999999
Not Available
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
AXLE REAR
5020789
9999999
Not Available
28
RIM-REAR 8.5/10SILVER
1520183117
Not Available

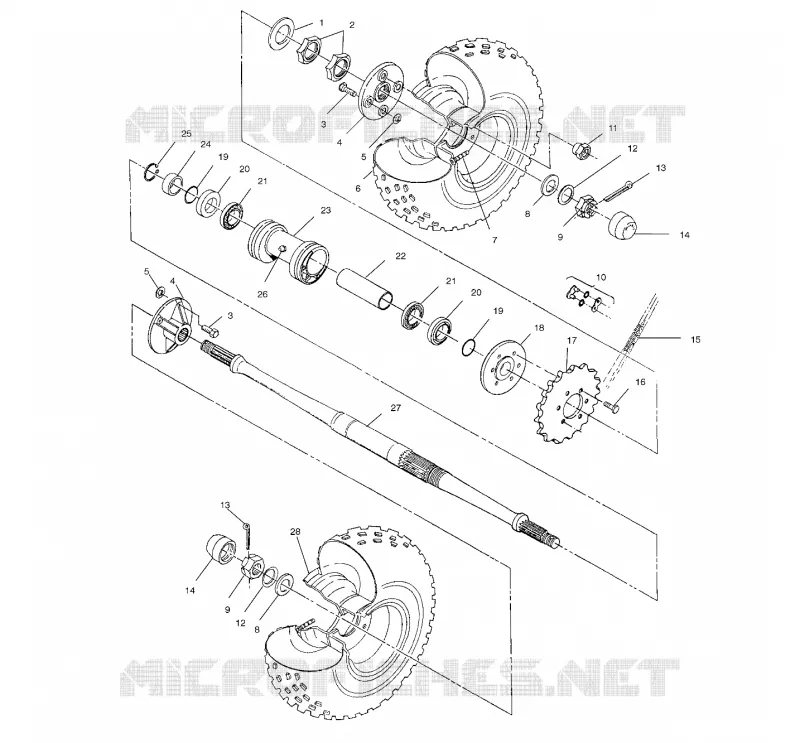

Find the detailed REAR WHEEL DRIVE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
