1
Engine displacement
500
2
Year
1999
3
Trim
INTL BIG BOSS 500 6X6 - A99AE50DA
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
5
MOUNT ENG.TOP BLK.
5240328067
Not Available
6
NUT LOCK
7542403
9999999
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
10
FOIL-TAPE
5811373
9999999
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
15
BRKT CARB.MT.
5240609067
Not Available
16
WASHER
7552605
9999999
Not Available
17
HEX NUT
7542105
$7,34 Unit Price incl. VAT
18
Gasket
_______
Not Available
19
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
20
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
21
SHEATH/FOIL LAM 65CM.
845008065
Not Available
22
SCREW
7512490
$7,34 Unit Price incl. VAT
23
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
24
MOUNT R.ENG BLK
5241921067
Not Available
25
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
26
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
27
BUSHING
5430261
$13,64 Unit Price incl. VAT
28
WASHER
5210748
$7,34 Unit Price incl. VAT
29
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
30
BOLT
7512566
9999999
Not Available
31
Gasket
_______
Not Available
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
MOUNT ENG BLK
1040534067
Not Available
34
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
35
BOLT
7515321
9999999
Not Available
36
NUT FLEX-LOC
7542303
9999999
Not Available
37
MOUNT MOTOR
3110067
9999999
Not Available
38
WASHER
7555832
$4,19 Unit Price incl. VAT
39
BOLT
7515438
$9,44 Unit Price incl. VAT
40
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
MANIFOLD BLK
1260832029
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
47
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
48
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
49
MOUNT R.RUBBER
3110068
9999999
Not Available

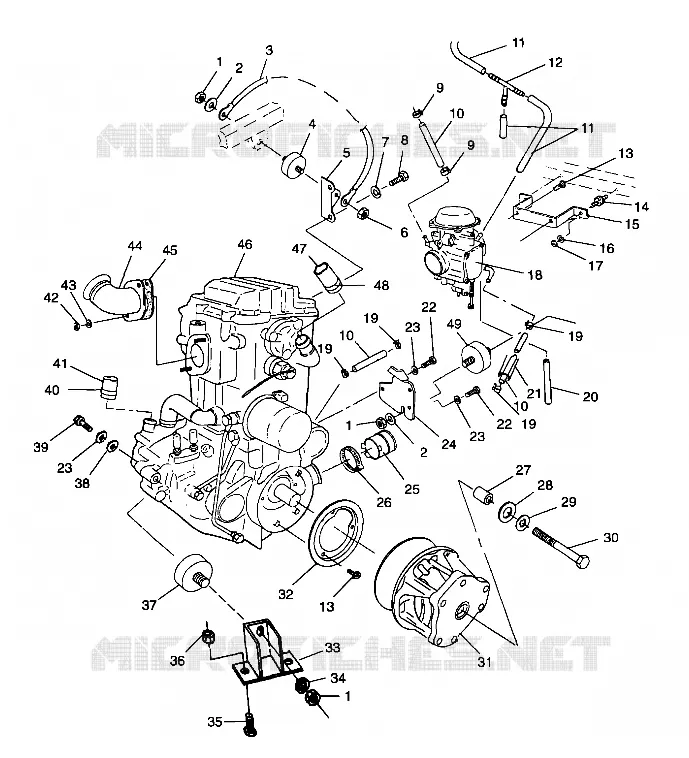

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
