Engine displacement
500
2
Year
2005
3
Trim
SCRAMBLER 500 4X4 - A05BG50AA
4
Parts Catalog
STARTING MOTOR
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
STEERING POST
STARTING MOTOR
-
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
-
ASM. MOTOR STARTING
3084981
9999999
Not Available
-
ASM-GEAR SHAFT
3087030
9999999
Not Available
1
WASHER SET
3084982
9999999
Not Available
2
CARBON BRUSH SET
3088169
9999999
Not Available
3
FLANGE NUT
3083649
9999999
Not Available
4
O-RING
3084408
9999999
Not Available
5
BOLT AND WASHER ASSEMBLY
3082038
9999999
Not Available
6
ASM. COVER REAR
3085034
9999999
Not Available
7
ARMATURE ASSEMBLY
3085353
9999999
Not Available
8
BRACKET ASSEMBLY; FRONT
3085033
9999999
Not Available
9
O-RING
3240114
9999999
Not Available
10
BOLT ASM SET
3084983
9999999
Not Available
11
RUBBER RING
3084405
9999999
Not Available
12
WASHER
7555908
7556994
$6,29 Unit Price incl. VAT
13
CLIP
3084412
9999999
Not Available
14
SPRING WEIGHT
3084411
9999999
Not Available
15
SPRING RETURN
3084410
9999999
Not Available
16
CLIP
3084409
9999999
Not Available

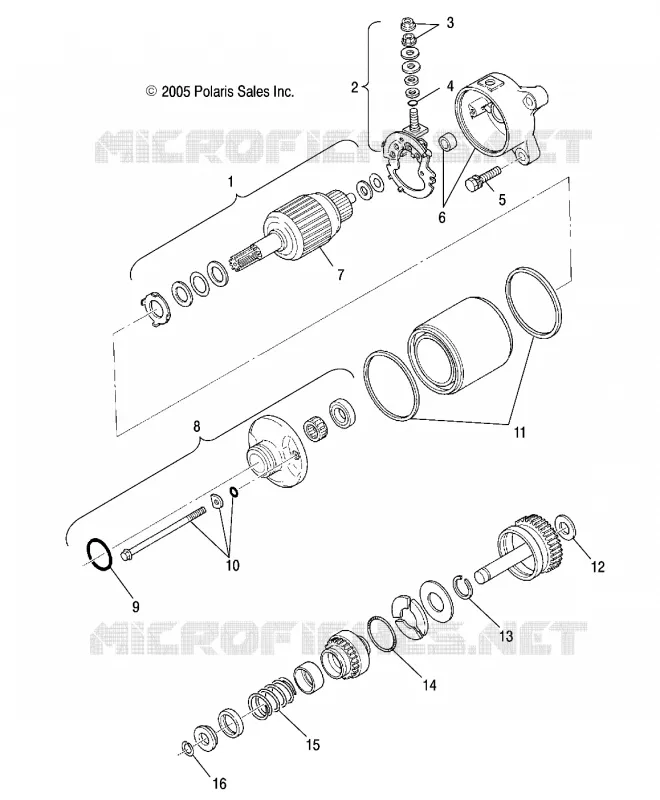

Find the detailed STARTING MOTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
