1
Engine displacement
500
2
Year
2005
3
Trim
SCRAMBLER 500 4X4 - A05BG50AA
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
OIL FILTER
CRANKSHAFT AND PISTON
1
1
2
2
2
3
3
3
4
5
6
7
8
9
10
10
11
12
13
13
13
14
14
14
14
15
16
17
18
19
20
1
CLIP
3085534
9999999
Not Available
2
PISTON SET; .020 IN/ .50 MM
3087223
9999999
Not Available
2
STANDARD PISTON SET
3087221
9999999
Not Available
2
PISTON SET .010 IN/ .25 MM
3087222
9999999
Not Available
3
PISTON RING SET; .010 IN
3087225
9999999
Not Available
3
PISTON RING SET
3087226
9999999
Not Available
3
STANDARD PISTON RING SET
3087224
9999999
Not Available
4
BALL BEARING
3085815
9999999
Not Available
5
CRANKSHAFT
3085812
9999999
Not Available
6
PIN-CRANK
3087090
9999999
Not Available
7
ROD CONNECTING
3085813
9999999
Not Available
8
BEARING LARGE END
3085343
9999999
Not Available
9
BALL; STEEL
3085024
9999999
Not Available
10
CRANKSHAFT
3089678
9999999
Not Available
10
ASM. CRANKSHAFT
3089570
9999999
Not Available
11
BALANCE GEAR
3089245
9999999
Not Available
12
SHAFT BALANCER
3086837
9999999
Not Available
13
SPACER 1.0
3084896
9999999
Not Available
13
SPACER 0.8
3084895
9999999
Not Available
13
SPACER 1.2
3084897
9999999
Not Available
14
SPACER 1.0
3084893
9999999
Not Available
14
SPACER 1.2
3084894
9999999
Not Available
14
SPACER; .6
3240088
9999999
Not Available
14
SPACER 0.8
3084892
9999999
Not Available
15
SPROCKET 1
3084882
9999999
Not Available
16
SLIT NUT
3085528
9999999
Not Available
17
WASHER
3086767
9999999
Not Available
18
LOCK NUT
3083905
9999999
Not Available
19
KEY
3081447
9999999
Not Available
20
KEY; WOODRUFF
3240168
9999999
Not Available

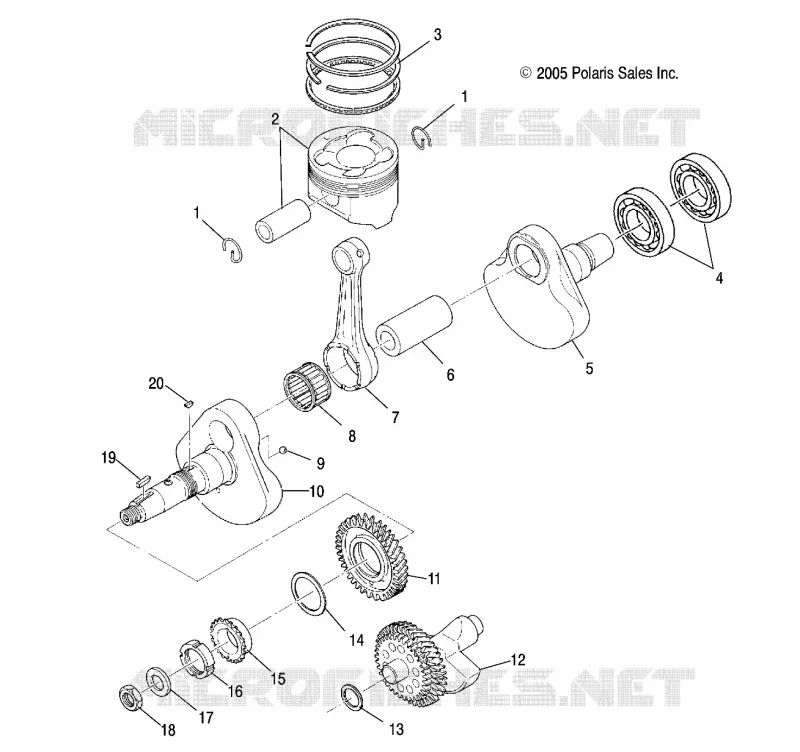

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
