1
Engine displacement
850
2
Year
2019
3
Trim
850 SWITCHBACK XCR / SC SELECT
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER, CYL. HEAD
by
STEERING, SKI ASM.

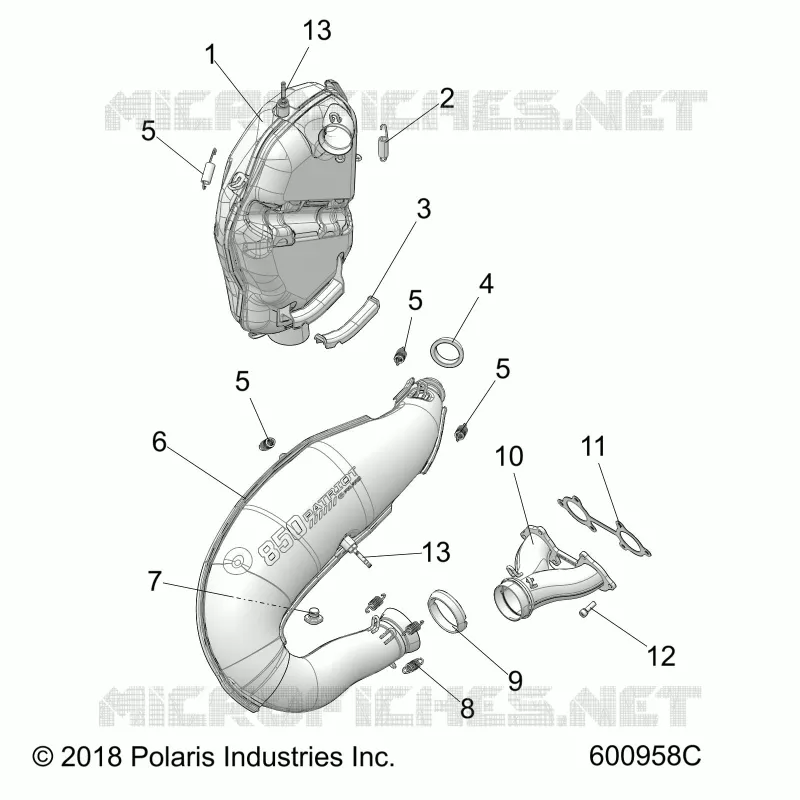

EXHAUST
11
12
13
13
1
RESONATOR WELD; BLACK; 850
1263068029
Not Available
2
SPRING
7042029
$10,49 Unit Price incl. VAT
3
EXHAUST SILENCER ISOLATOR; LOWER
5416854
$23,09 Unit Price incl. VAT
4
EXHAUST SOCKET SEAL
3610047
$62,99 Unit Price incl. VAT
5
SPRING
7041687
$12,59 Unit Price incl. VAT
6
TUNED PIPE ASSEMBLY; 850
1263067
$1 133,99 Unit Price incl. VAT
7
RUBBER MOUNT PIPE
5413640
5418823
$9,44 Unit Price incl. VAT
8
EXAUST SPRING
7043726
$9,44 Unit Price incl. VAT
9
EXHAUST SOCKET SEAL
3610299
$20,99 Unit Price incl. VAT
10
MANIFOLD WELD; BLACK
1263034029
Not Available
11
EXHAUST MANIFOLD GASKET
5814505
5815159
$41,99 Unit Price incl. VAT
12
SCREW
7517322
$4,19 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
