1
Engine displacement
850
2
Year
2019
3
Trim
850 SWITCHBACK XCR / SC SELECT
4
Parts Catalog
BRAKES, BRAKE SYSTEM
5
Parts Diagram
Parts Catalog
WINDSHIELD
by
DRIVE TRAIN, CLUTCH, SECONDARY
BRAKES, BRAKE SYSTEM
1
1
2
2
3
4
5
6
7
8
9
10
11
12
1
KIT-M10X1.25 BANJO 98-20930
2203392
$36,74 Unit Price incl. VAT
2
CRUSH WASHER KIT; COPPER
2203393
$47,24 Unit Price incl. VAT
3
K-BRKLN 750MM 20X70 98-35973
2207728
9999999
Not Available
4
BLEEDER FITTING KIT
2202205
$68,24 Unit Price incl. VAT
5
PHANTOM CALIPER KIT
2206252
$540,74 Unit Price incl. VAT
6
RETAINING PIN KIT
2202206
$41,99 Unit Price incl. VAT
7
BRAKE PAD PIN KIT
2206251
$140,16 Unit Price incl. VAT
8
SEAL KIT
2202204
$73,49 Unit Price incl. VAT
9
CALIPER AND PISTON KIT
2204035
$114,44 Unit Price incl. VAT
10
SERVICE KIT
2206235
$383,24 Unit Price incl. VAT
11
WASHER-M10.4X25X2.4 ZOD
7556473
$4,19 Unit Price incl. VAT
12
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT

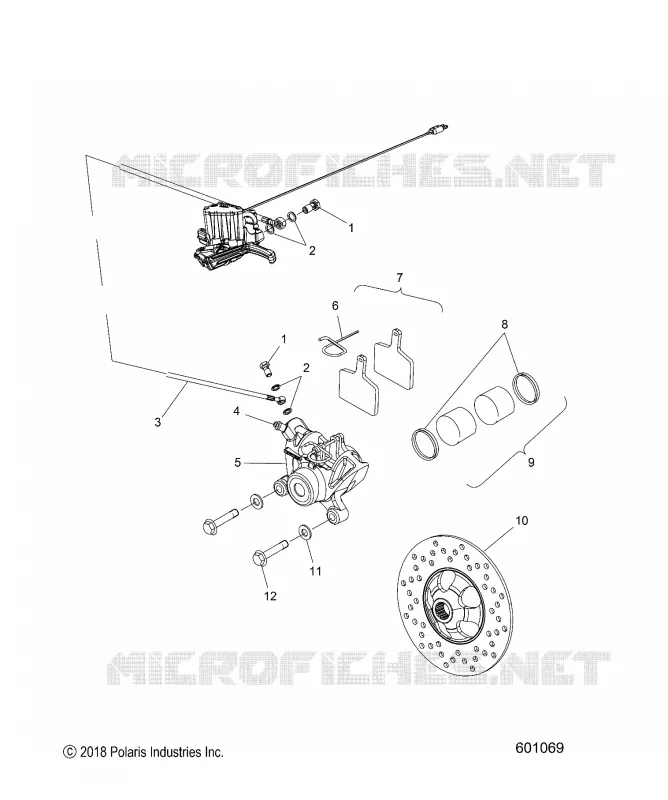

Find the detailed BRAKES, BRAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
