1
Engine displacement
570
2
Year
2018
3
Trim
ACE 570
4
Parts Catalog
BRAKES, FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
HOOD AND FRONT BODY WORK
by
BRAKES, REAR CALIPER
BRAKES, FRONT BRAKE CALIPER
1
1
2
3
4
5
6
7
8
9
10
1
BRAKE CALIPER ASM FRT LEFT 1.5 METALLIC
1912119
$325,49 Unit Price incl. VAT
1
BRAKE CALIPER ASM FRONT RIGHT METALLIC
1912120
$325,49 Unit Price incl. VAT
2
CALIPER MOUNT ASSEMBLY; FRONT; 1.5; MET
1912121
$99,74 Unit Price incl. VAT
3
BRAKE PISTON; 1.5
5132829
$73,49 Unit Price incl. VAT
4
CALIPER SEAL; INNER; 1.50 IN
5412010
$13,64 Unit Price incl. VAT
5
CALIPER SEAL; OUTER; 1.50 IN
5412011
$13,64 Unit Price incl. VAT
6
PIN BUSHING BOOT
5412505
$6,29 Unit Price incl. VAT
7
PIN SEAL BOOT
5412506
$6,29 Unit Price incl. VAT
8
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
9
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
10
1.5 IN. BRAKE PAD KIT ASSEMBLY
2202413
$98,16 Unit Price incl. VAT

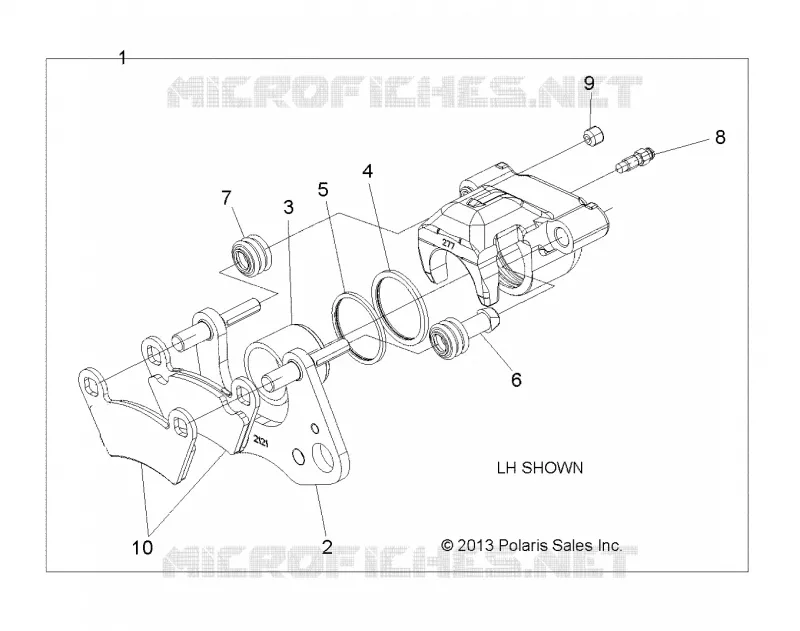

Find the detailed BRAKES, FRONT BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
