Engine displacement
500
2
Year
2005
3
Trim
500 / 600 XC SP EDGE / M-10
4
Parts Catalog
WATER PUMP/OIL PUMP
5
Parts Diagram
Parts Catalog
CARBURETOR
by
PISTON CRANKSHAFT
WATER PUMP/OIL PUMP
1
TYPE S SEAL
5411197
$41,99 Unit Price incl. VAT
2
SEAL
3610067
3610433
$37,79 Unit Price incl. VAT
3
WASHER FLAT SS.
7556006
9999999
Not Available
4
IMPELLER
5432330
9999999
Not Available
5
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
6
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
7
WATER PUMP GASKET COVER
5811601
$36,74 Unit Price incl. VAT
8
COVER-WATERPUMP HI FLOW
5630920
5631951
$136,49 Unit Price incl. VAT
9
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
10
THRUST WASHER
7555977
$13,64 Unit Price incl. VAT
11
CROSS SHAFT GEAR; 11 START
5133688
9999999
Not Available
12
O-RING
5411196
9999999
Not Available
13
BEARING PUMP SHAFT FLANGED
5010391
9999999
Not Available
14
GASKET
5811789
9999999
Not Available
15
OIL PUMP ASSEMBLY
2540117
9999999
Not Available
16
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
17
CLAMP
7080603
$3,14 Unit Price incl. VAT
18
SCREW
7517277
$5,76 Unit Price incl. VAT

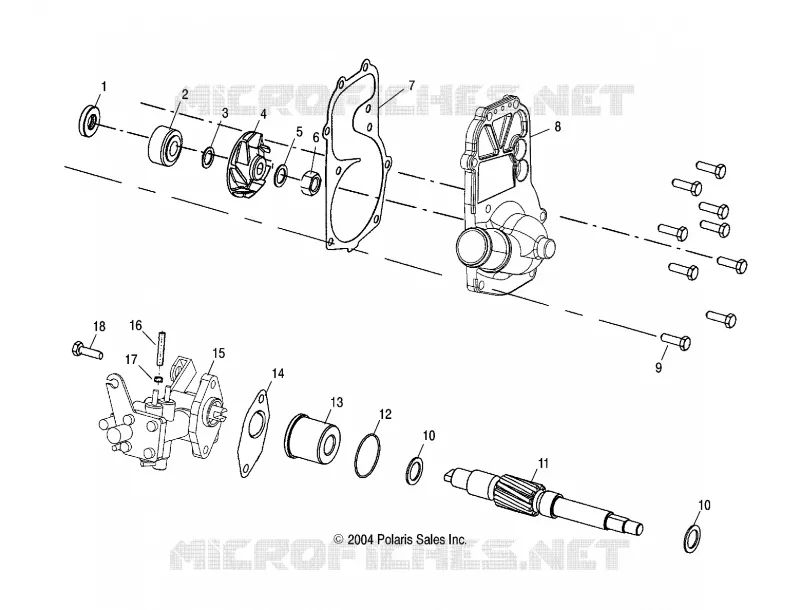

Find the detailed WATER PUMP/OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
