Engine displacement
500
2
Year
2005
3
Trim
500 / 600 XC SP EDGE / M-10
4
Parts Catalog
CHASSIS
5
Parts Diagram
Parts Catalog
DECALS (50TH ANNIVERSARY)
by
SEAT, ADJUSTABLE
CHASSIS
1
Asm. Chassis M-10 [Incl. 32 37]
10140751156
Not Available
2
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
3
OIL TANK AND HOSE SUPPORT BRACKET
5246330
9999999
Not Available
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
STOP TORQUE COURSE 3/8-16
3021104
$36,74 Unit Price incl. VAT
6
WELD-TORQUE STOP;S44
1013379
9999999
Not Available
7
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
8
SCREW
7517632
$10,49 Unit Price incl. VAT
9
ASM-CHASSIS EDGE WB BLK/SL
10140671156
Not Available
10
PAD-SUSP FRONT BLK RH
5245001067
Not Available
10
PAD-SUSP FRONT BLK LH
5244999067
Not Available
11
BRACE-LOWER TUNNEL BLK LH
5244997067
Not Available
11
BRACE-LOWER TUNNEL BLK RH
5244998067
Not Available
12
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
13
BOLT
7512232
$2,09 Unit Price incl. VAT
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
BUMPER ASSEMBLY; REAR
2632165309
Not Available
16
SNOW FLAP BACKER
5812430
9999999
Not Available
17
RIVET
7621418
$2,09 Unit Price incl. VAT
18
FLAP-SNO EDGE LONG BLACK W/ BRIGHT WHITE
54348471038
Not Available
19
SCREW .75
7517441
$4,19 Unit Price incl. VAT
20
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
21
ASM-SNOWSKIRT/REFLECTOR INDY R
2632444293
Not Available
21
ASM-SNOWSKIRT/REFLECTOR BLK LH
2632443070
Not Available
21
ASM-SNOWSKIRT/REFLECTOR INDY R
2632443293
Not Available
21
ASM-SNOWSKIRT/REFLECTOR BLK RH
2632444070
Not Available
22
RIVET
7621472
$2,09 Unit Price incl. VAT
23
GRIP-TUNNEL EDGE COMMON BLK LH
5133971067
Not Available
23
GRIP-TUNNEL EDGE COMMON BLK RH
5133972067
Not Available
24
RIVET
7661637
$2,09 Unit Price incl. VAT
25
STRAP
5433150
$47,24 Unit Price incl. VAT
26
MOUNT-CONSOLE TOE CLIP BLK LH
5245457067
Not Available
26
MOUNT-CONSOLE TOE CLIP BLK RH
5245458067
Not Available
27
SUPPORT-FOOTREST BLK RH
5246311067
Not Available
27
SUPPORT-FOOTREST BLK LH
5246310067
Not Available
28
FOOTREST BLK RH
5247205067
Not Available
28
FOOTREST BLK LH
5245288067
Not Available
29
BARBED PLUG; .625
7081085
$13,64 Unit Price incl. VAT
29
GROMMET-M10 ACE WIRE
5412276
9999999
Not Available
30
MOUNT KIT; TRAILING ARM; LEFT
2202059
9999999
Not Available
30
TRAILING ARM MOUNT KIT; RIGHT
2202598
9999999
Not Available
31
GUARD-BELT
5246066
9999999
Not Available
32
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
33
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
34
PLUG-HOLE 1.25
7081076
9999999
Not Available
35
BULKHEAD-FRONT MACH
5132292
9999999
Not Available
36
TUBE-TUNNEL REINF FRONT
5245431
9999999
Not Available
37
TUBE-TUNNEL REINF REAR
5245432
9999999
Not Available

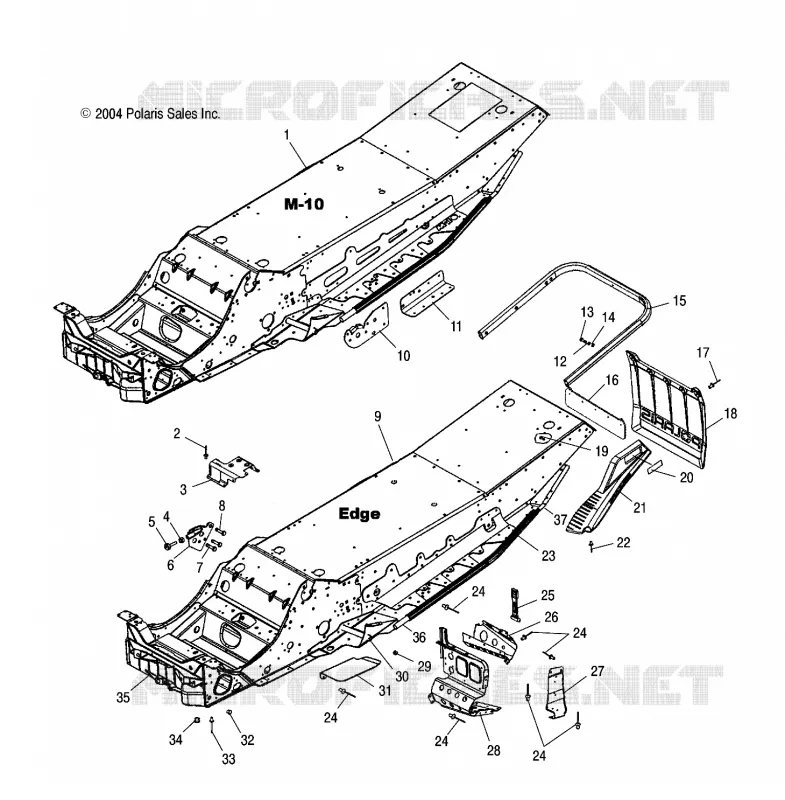

Find the detailed CHASSIS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
