Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
CYLINDER
by
WATER PUMP/FUEL PUMP
PISTON CRANKSHAFT
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
RING PISTON; .020 IN
3084344
9999999
Not Available
2
PISTON RING STANDARD
3084342
9999999
Not Available
2
PISTON RING .010 IN
3084343
9999999
Not Available
3
SET PISTON .020/.50MM O/S
3085871
9999999
Not Available
3
SET PISTON STANDARD
3085869
9999999
Not Available
3
SET PISTON .010/.25MM O/S
3085870
9999999
Not Available
4
PISTON PIN
3083858
9999999
Not Available
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
PIN CRANK 2
3083456
5141629
$57,74 Unit Price incl. VAT
7
END BEARING LARGE
3085628
9999999
Not Available
8
CONNECTING ROD
3083252
9999999
Not Available
9
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
10
PIN; CRANK
3083233
9999999
Not Available
11
BALL BEARING
3085205
9999999
Not Available
12
SPACER
3085203
9999999
Not Available
13
BALL BEARING
3085204
9999999
Not Available
14
CRANKSHAFT-3(PTO SIDE)
3085202
9999999
Not Available
15
ASM-CRANKSHAFT
3086997
9999999
Not Available
15
CRANKSHAFT 1 MAG SIDE
3086835
9999999
Not Available
16
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT
17
BALL BEARING
3084601
9999999
Not Available
18
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
19
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
20
CRANKSHAFT 2
3083713
9999999
Not Available
21
BALL BEARING
3086878
9999999
Not Available

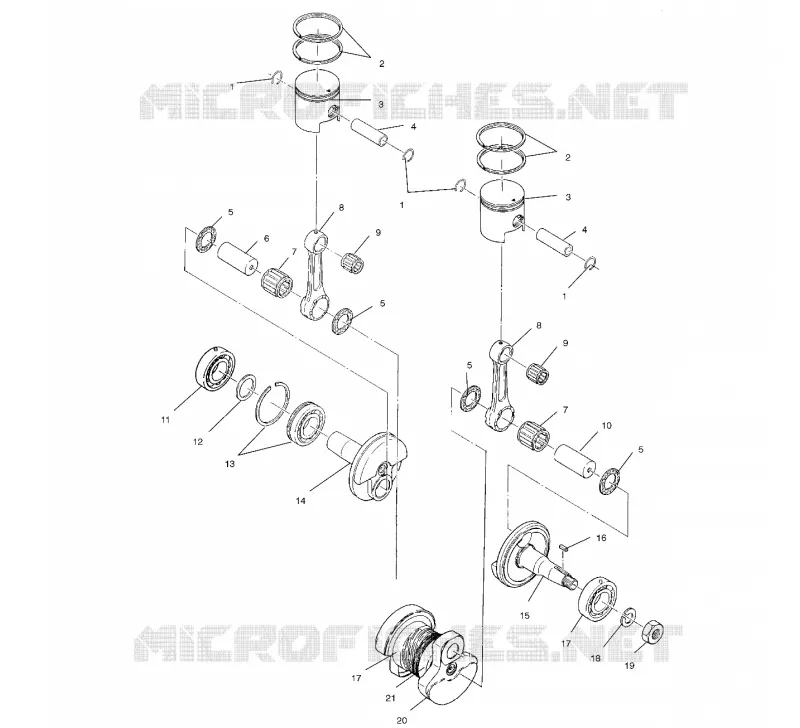

Find the detailed PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
