GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)
5
Parts Diagram
Parts Catalog
DRIVE SHAFT ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B008)
by
SUSPENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B011)

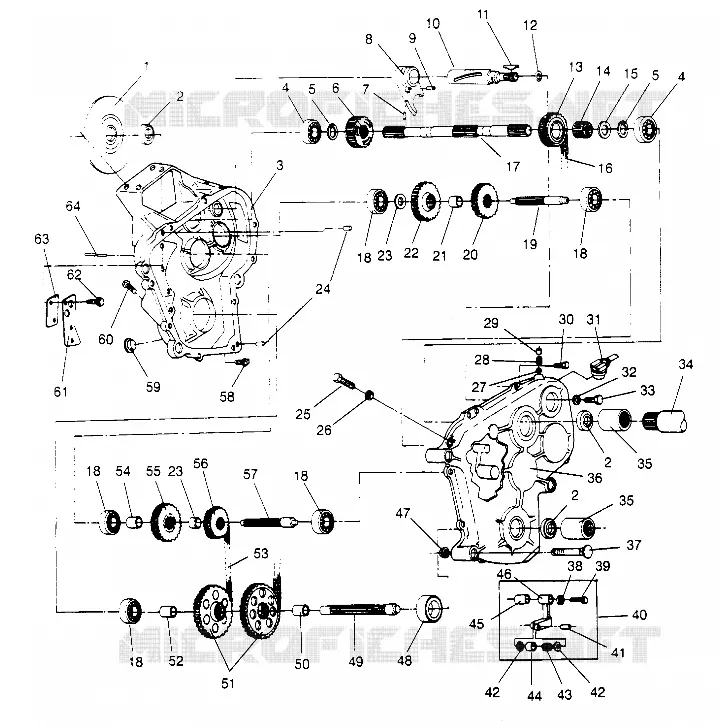

GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)
-
GEARCASE ASMWTRAK
1341089
9990000
Not Available
1
DISC BRAKE WELD.
1910027
9999999
Not Available
2
OIL SEAL
3610015
9999999
Not Available
3
GEARCASE RH MACH.
5130755
Not Available
4
BEARING; 205 WITHOUT SEAL
3514304
$27,29 Unit Price incl. VAT
5
RING RET.
7710411
9999999
Not Available
6
PINION REVERSE
5130667
9999999
Not Available
7
PIN; SPRING
7661206
9999999
Not Available
8
FORK SHIFT
5130662
9999999
Not Available
9
PIN; DOWEL
7661819
9999999
Not Available
10
SHAFT SHIFT
5130802
Not Available
11
WEIGHT; KEY
7721112
9999999
Not Available
12
O-RING
5410440
9999999
Not Available
13
GEAR 19T FWD. (19T)
5130697
Not Available
14
BEARING NEEDLE
3554503
Not Available
15
WASHER
7555751
9999999
Not Available
16
CHAIN 66 PITCH
3224024
9999999
Not Available
17
SHAFT INPUT
5020508
Not Available
18
BALL BEARING
3514001
$34,64 Unit Price incl. VAT
19
SHAFT LOW RANGE
5020481
Not Available
20
GEAR 24T
5130607
9999999
Not Available
21
SPACER
5010260
Not Available
22
GEAR;30T;LOW RANGE
5130758
9999999
Not Available
23
SPACER REV.SHAFT
5010225
Not Available
24
PIN; DOWEL
7661904
9999999
Not Available
25
SCREW
7512470
9999999
Not Available
27
BALL DETENT (10)
7080310
$10,49 Unit Price incl. VAT
28
SPRING SHIFTER DETENT
7041187
9999999
Not Available
29
SCREW; SET
7515473
9999999
Not Available
30
SCREW
7512225
9999999
Not Available
31
SW REV./NEUT.INDIC.
4110062
$62,99 Unit Price incl. VAT
32
WASHER
7552604
$3,14 Unit Price incl. VAT
33
SCREW
7512144
9999999
Not Available
34
JACKSHAFT BLK (WIDETRAK) Substituted by 6230095-067
6230074067
Not Available
35
COUPLER GREASEABLE
1341096
9999999
Not Available
36
GEARCASE LH MACH.
5130628
Not Available
37
BOLT
7515474
9999999
Not Available
38
WASHER 5/16SHAKEPROOF(10)
7577909
Not Available
39
BOLT
7512329
$7,34 Unit Price incl. VAT
40
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
41
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
42
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
43
BEARING
3553002
9999999
Not Available
44
WHEEL C/C IDLER
5630123
9999999
Not Available
45
BUSHING
5010217
Not Available
46
BLOCK TIGHTENER
5630122
9999999
Not Available
47
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
48
CHAINCASE BEARING
3514305
$34,64 Unit Price incl. VAT
49
SHAFT OUTPUT
6230065
Not Available
50
SPACER OUTPUT SHAFT
5010227
Not Available
51
SPROCKET-41T 11W
3222037
9999999
Not Available
52
SPACER;OUTPUT
5020480
9999999
Not Available
53
CHAIN SILENT
3224037
Not Available
54
SPACER
5010261
Not Available
55
GEAR 30T REVERSE
5130757
Not Available
56
SPKT 18T
3221042
9999999
Not Available
57
SHAFT REVERSE
5020446
Not Available
58
PLUG; PIPE
7051513
9999999
Not Available
59
PLUG; PIPE
7051519
9999999
Not Available
60
PLUG; PIPE
7051511
9999999
Not Available
61
PLATE; VENT
5211036
9999999
Not Available
62
SCREW
7512252
9999999
Not Available
63
GASKET VENT
5810305
9999999
Not Available
64
PIN-SPIRAL
7661504
9999999
Not Available

Find the detailed GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
