RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001)
5
Parts Diagram
Parts Catalog
CONSOLE WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A014)
by
BRAKE EUROPEAN WIDETRAK LX E952064 (4928942894B007)
RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001)
1
BACKREST ASM.
2681465
9999999
Not Available
2
COVER BACKREST
2681265
9999999
Not Available
3
SHIELD TAILLIGHT
5222868067
Not Available
4
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
5
DECAL TRACK/SEAT(CPSC) (Silver)
7074255
Not Available
6
RACK BLK
1012076067
Not Available
7
RIVET
7621462
$2,09 Unit Price incl. VAT
8
BRKT SNOW-FLAP
5220497067
Not Available
9
SNOW FLAP-SIDE
5810222
Not Available
10
BASE&SOCKET T/L
4032047
9999999
Not Available
11
GASKET
4032045
$7,34 Unit Price incl. VAT
12
TAIL LIGHT LENS
4032046
$62,99 Unit Price incl. VAT
13
REFLECTOR
5430781
Not Available
14
SCREW
4032029
$9,44 Unit Price incl. VAT
15
SCREW
7511856
9999999
Not Available
16
BULB TAILLIGHT
4030044
9999999
Not Available
17
TAILLIGHT ASM.
2432035
9999999
Not Available
18
HITCHKIT L.T./STARTRAK
2870708
9999999
Not Available
19
HITCH WELD; BLK.
1011624067
Not Available
20
CLEVIS PIN
7662209
$17,84 Unit Price incl. VAT
21
HITCH WELD;BLK.(U.S.)
1011518067
Not Available
22
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
23
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
24
SCREW(10) Substituted by 7512490
7512402
Not Available
25
EXTENSION TUNNEL REAR LX
5240516
9999999
Not Available
26
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
27
PANELR.EXTENSION
5240530
9999999
Not Available
28
PLATE ANGLE
5222968
Not Available
29
FLAP SNOW(WIDETRAK)
5410553
9999999
Not Available
30
STRIP WEAR EXT.
5222448
9999999
Not Available
31
RIVET
7661637
$2,09 Unit Price incl. VAT
32
RIVET
7621418
$2,09 Unit Price incl. VAT
33
RIVET(50)
7621449
9999999
Not Available
34
BRKT HARNESS PROTECTOR
5222323
9999999
Not Available
35
RIVET
7621429
$2,09 Unit Price incl. VAT
36
PROTECTOR; BED
5410560
9999999
Not Available
37
PUSH-ON NUT
7670054
$2,09 Unit Price incl. VAT
38
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
39
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
40
BOLT
7512281
9999999
Not Available
41
NUT
7542458
9999999
Not Available
42
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
43
BOLT
7515522
$7,34 Unit Price incl. VAT
44
PLUG
5430713
9999999
Not Available
45
SCREW
7515355
9999999
Not Available
46
WASHER
7552606
9999999
Not Available
47
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
48
BACKREST BLK.
1011781067
Not Available
49
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

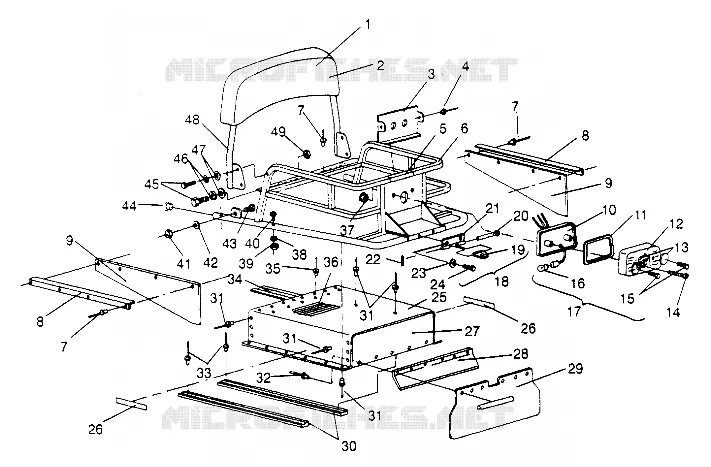

Find the detailed RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
