DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/01/11 AND BEFORE) for POLARIS SPORTSMAN EPS 550 - A11ZX55AB/AK/AL/AT/AW/AX from 2011

ENGINE, AIR INTAKE (BUILT 10/23/10 AND AFTER)

DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/01/11 AND BEFORE)

-

ASM-TRANS 550;BOSS

1332845

9999999

Not Available

1

SUB ASSSEMBLY; BEARING COVER

3235198

$40,94 Unit Price incl. VAT

2

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

3

EXTERNAL RETAINING RING

3234318

$5,76 Unit Price incl. VAT

4

RING; RETAINING BASIC; EXTERNA

3234327

$13,64 Unit Price incl. VAT

5

INTERNAL RETAINING RING

3234741

$17,84 Unit Price incl. VAT

6

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

7

EXTERNAL RETAINING RING

3234641

$26,24 Unit Price incl. VAT

8

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

9

SHIM

3234643

$68,24 Unit Price incl. VAT

10

SHIM

3234644

$26,24 Unit Price incl. VAT

11

WASHER; THRUST

3234646

$41,99 Unit Price incl. VAT

12

SHIM KIT

2204264

9999999

Not Available

13

SHIM KIT

2204268

$68,24 Unit Price incl. VAT

14

WASHER

3234648

9999999

Not Available

15

WASHER; THRUST

3234757

$20,99 Unit Price incl. VAT

16

SILENT CHAIN

3234737

$314,99 Unit Price incl. VAT

17

BEARING

3233019

$54,59 Unit Price incl. VAT

18

BEARING

3233020

$80,84 Unit Price incl. VAT

19

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

20

BALL BEARING

3234651

$27,29 Unit Price incl. VAT

21

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

22

NEEDLE BEARING

3234759

$27,29 Unit Price incl. VAT

23

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

24

BEARING; NEEDLE

3234655

$27,29 Unit Price incl. VAT

25

NEEDLE BEARING

3234656

$27,29 Unit Price incl. VAT

26

BALL BEARING

3234657

9999999

Not Available

27

FLANGED BEARING

3234684

9999999

Not Available

28

SPRING; WAVE

3234688

$19,94 Unit Price incl. VAT

29

SPRING-CMPRSSN 1.687OD X 1.730

3234999

9999999

Not Available

30

CUP

3234696

9999999

Not Available

31

SPACER COMPENSATOR THRUST

3234697

9999999

Not Available

32

OUTPUT SHAFT

3234997

9999999

Not Available

33

SHAFT; REVERSE; 56T

3234736

$482,99 Unit Price incl. VAT

34

INPUT SHAFT; 25 TOOTH

3235063

$593,24 Unit Price incl. VAT

35

COMPENSATOR GEAR

3234762

9999999

Not Available

36

COMPENSATOR CAM

3234705

9999999

Not Available

37

HELICAL GEAR; 39T

3235132

9999999

Not Available

38

GEAR; 67T

3234706

$173,24 Unit Price incl. VAT

39

SPROCKET; 48 TOOTH

3234707

$68,24 Unit Price incl. VAT

40

SPROCKET 23 TOOTH

3234708

3235544

$73,49 Unit Price incl. VAT

41

DOG; ENGAGEMENT; LOW

3234718

$346,49 Unit Price incl. VAT

42

DOG-ENGAGEMENT GTO REV/LOW

3235341

$335,99 Unit Price incl. VAT

43

SILENT CHAIN

3234738

$456,74 Unit Price incl. VAT

44

COMPENSATOR SHAFT

3234721

9999999

Not Available

45

DOG-ENGAGEMENT GTOHIGH

3235134

9999999

Not Available

46

SPROCKET; 44 TOOTH

3234998

$125,99 Unit Price incl. VAT

47

PRIMARY SHAFT ASSEMBLY

3234768

9999999

Not Available

48

OUTPUT ASSEMBLY; FRONT

3234723

$414,74 Unit Price incl. VAT

49

SUB ASSSEMBLY; BEARING COVER

3235198

$40,94 Unit Price incl. VAT

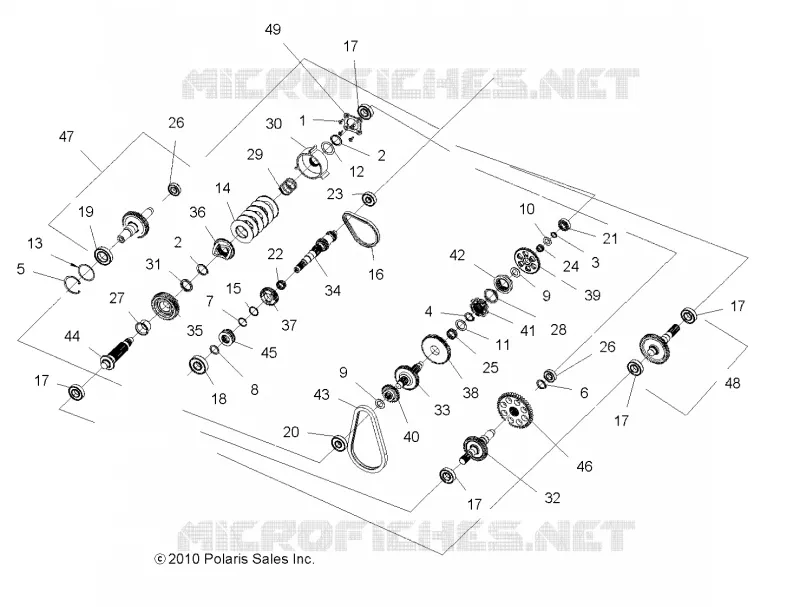

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/01/11 AND BEFORE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
