STEERING POST ASM. for POLARIS SPORTSMAN EPS 550 - A11ZX55AB/AK/AL/AT/AW/AX from 2011

STEERING, HANDLEBAR CONTROLS

STEERING POST ASM.

1

ASM-TIE ROD

1823620

1824007

$194,24 Unit Price incl. VAT

2

STEERING POST WELD; UPPER; BLACK

1823781329

Not Available

3

END ROD; RIGHT; 10 MM X 1.25 MM

7061175

$141,74 Unit Price incl. VAT

4

NUT-JAM M10X1.25 RH

7547452

9999999

Not Available

5

TIE ROD

5136903

$89,24 Unit Price incl. VAT

6

NUT-JAM M10X1.25 LH

7547451

9999999

Not Available

7

ROD END; LEFT; 10 MM X 1.25 MM

7061174

$141,74 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

PIN-COTTER(10)

7661205

$1,56 Unit Price incl. VAT

10

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

11

BRKT-UPPER STEERING BUSHING

5249143

9999999

Not Available

12

BUSHING-UPPER STEERING

5436128

5438904

$9,44 Unit Price incl. VAT

13

BOLT-M8X1.25X20 CARRIAGE

7518479

$7,34 Unit Price incl. VAT

14

NUT-M8X1.25 HXFLG NYLON INS

7547317

7548028

$5,24 Unit Price incl. VAT

15

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

16

ASM-STEERING POSTLOWER

1823762

2205364

$299,24 Unit Price incl. VAT

17

ASM-POWER STEERINGATV

2411799

9999999

Not Available

17

ASM-POWER STEERING;ATV

2411630

9999999

Not Available

18

POWER STEERING BRACKET; BLACK

5254633329

Not Available

19

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

20

FRONT DRIVE BRACKET; LEFT; BLACK

5253166329

Not Available

21

DRIVE BRACKET FRONT RIGHT BLACK

5253167329

Not Available

22

SCREW

7516827

$12,59 Unit Price incl. VAT

23

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

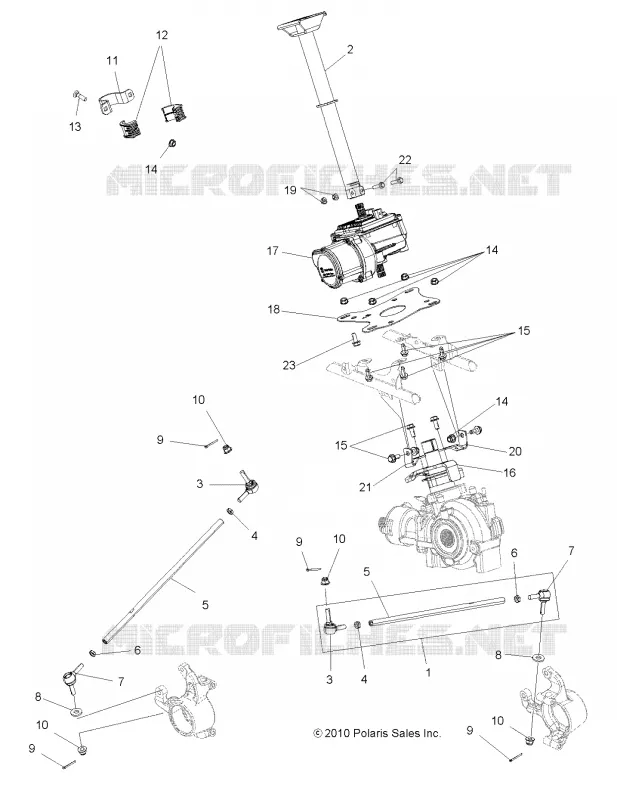

Find the detailed STEERING POST ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
