CRANKCASE for POLARIS SPORTSMAN 570 EPS TRACTOR/ZUG HUNTER EDITION from 2024

ENGINE, COOLING SYSTEM, RADIATOR, FAN & OVERFLOW BOTTLE

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

CRANKCASE

1

K-CRANKCASE 3024039

2209888

$1 837,49 Unit Price incl. VAT

2

BEARING-BALL 30X62X16

3515827

$28,34 Unit Price incl. VAT

3

RING-RTNG DHO-62

7710681

$13,64 Unit Price incl. VAT

4

PIN-DOWEL M6X10

5137611

5132835

$4,19 Unit Price incl. VAT

5

BEARING RETAINER PLATE

5256915

$47,24 Unit Price incl. VAT

6

SPACER-BRG MACH

5144728

$41,99 Unit Price incl. VAT

7

SCR-M8X1.25X50

7520105

$9,44 Unit Price incl. VAT

8

SCREW

7517598

$19,94 Unit Price incl. VAT

9

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

10

RING-SNAP 80X2.5

7710660

$7,34 Unit Price incl. VAT

11

SOCKET PLUG; 12 MM X 1.5 MM

7052306

$31,49 Unit Price incl. VAT

12

SCREW 8 MM X 1.25 MM X 90 MM

7520104

$10,49 Unit Price incl. VAT

13

CRANKSHAFT SEAL

3610171

$89,24 Unit Price incl. VAT

14

BEARING-BALL 40X80X18 DG NCAGE

3515831

$55,43 Unit Price incl. VAT

15

COPPER WASHER

5812232

7556937

$6,29 Unit Price incl. VAT

16

OIL PAN;MACH

5143696

$188,99 Unit Price incl. VAT

17

OIL PAN GASKET

5414626

$20,99 Unit Price incl. VAT

18

SCR-HXFLG M6X1.0X80

7520115

$13,64 Unit Price incl. VAT

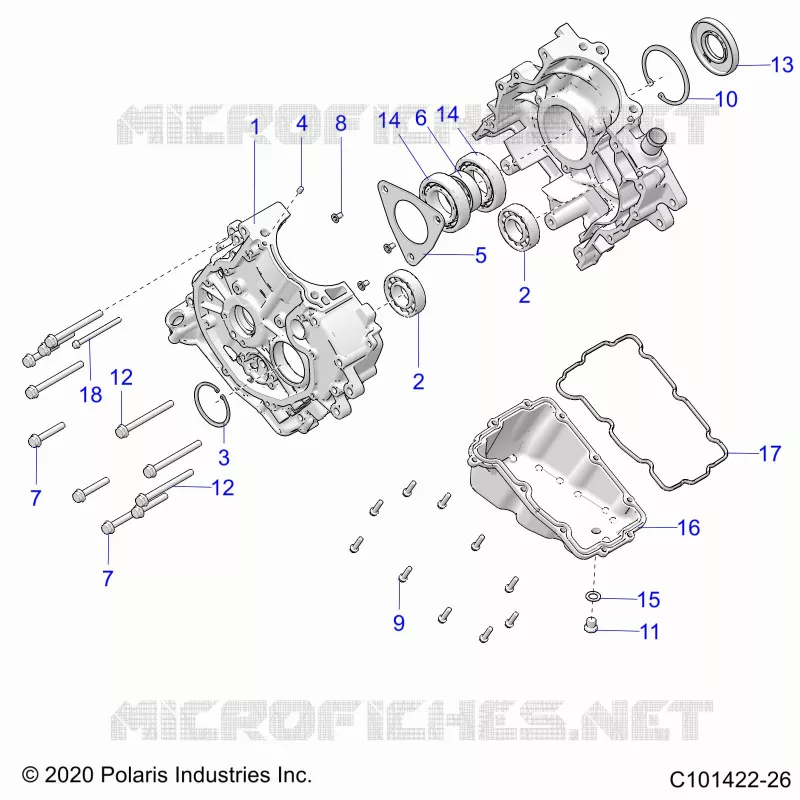

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
