BRAKES, BRAKE PEDAL AND MASTER CYLINDER for POLARIS SPORTSMAN 570 EPS TRACTOR/ZUG HUNTER EDITION from 2024

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

1

CUP-FLS-RES;BRAKE

5418431

$7,65 Unit Price incl. VAT

1

ASM-RESERVOIR;BRAKE;FLS

1914158

$51,23 Unit Price incl. VAT

2

DIAPHRAM-FLS-RES;BRAKE

5418432

$6,08 Unit Price incl. VAT

3

RING-FLS-RES;BRAKE

5418433

$7,34 Unit Price incl. VAT

4

CAP-FLS-RES;BRAKE

5418434

Not Available

5

ASM-M/CYL DIRMC 3/4HO B/U-RING

1913815

$178,49 Unit Price incl. VAT

6

HOSE-RESERVOIR BRAKE 706MM

1911267706

Not Available

7

SHEATH-REFLECTSLEEVE VTR 330MM

8450226330

Not Available

8

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

9

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

10

TUBE-SPACER

5343053

$10,49 Unit Price incl. VAT

11

PEDAL PIVOT BUSHING

5433189

$7,34 Unit Price incl. VAT

12

WELD-BRAKE PEDAL M.BLK

1914416458

Not Available

13

TORSION SPRING; BRAKE

7041750

$16,79 Unit Price incl. VAT

14

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

15

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

16

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

17

SCR-M8X1.25X50

7520105

$9,44 Unit Price incl. VAT

18

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$5,24 Unit Price incl. VAT

19

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$3,14 Unit Price incl. VAT

20

SENSOR-FLS-RES;BRAKE

4081253

Not Available

21

FLOAT-SENSOR;RESERVOIR;BRK

5418577

$16,79 Unit Price incl. VAT

22

BRKT-FLUID RESERVOIR BLACK

5274333329

Not Available

23

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

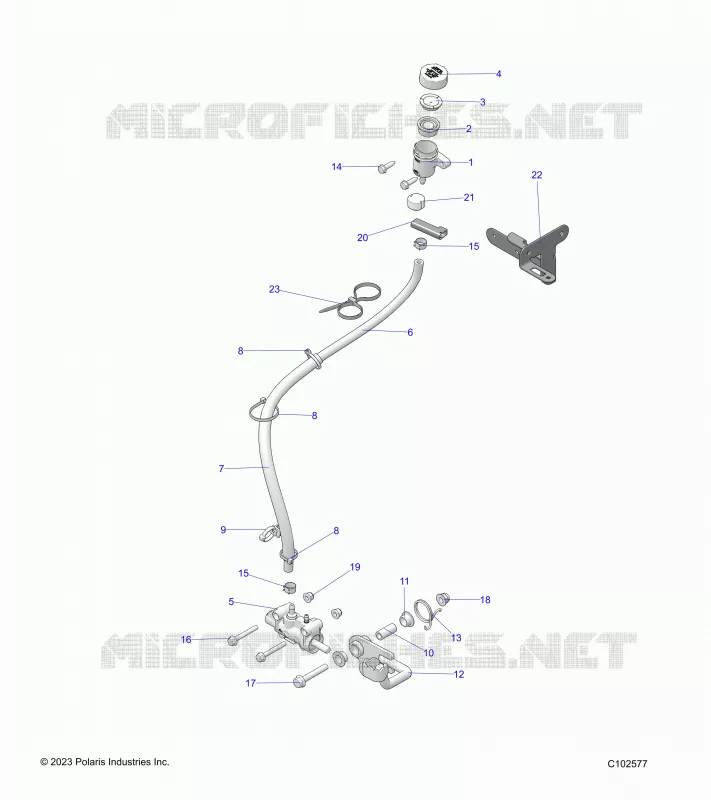

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
