Engine displacement
800
2
Year
2013
3
Trim
SPORTSMAN 800 EFI - A13MH76AD/AX/AZ
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
ENGINE, CRANKSHAFT AND BALANCE SHAFT
CRANKCASE
1
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
1
CRANKCASE KIT
2204391
9999999
Not Available
2
HOLLOW DOWEL; 16 MM X 12 MM
7661175
$10,49 Unit Price incl. VAT
3
EXPANSION PLUG; 19 MM
7051530
$15,74 Unit Price incl. VAT
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
JOURNAL BALL SHAFT BEARING
5132753
9999999
Not Available
6
PLUG-EXPANSION 13MM 500 PSI
7052288
9999999
Not Available
7
FLANGE SEAL; 35 X 72 X 7
5412676
$73,49 Unit Price incl. VAT
8
MAIN JOURNAL BEARING
3585704
$40,94 Unit Price incl. VAT
9
CRANKCASE BAFFLE PLATE
5211785
9999999
Not Available
10
HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM
7518045
9999999
Not Available
12
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
13
O-RING SEAL; .070 X .614
5812016
$5,76 Unit Price incl. VAT
14
RING-RETAINING 1 5/8 (10)
7710512
$7,34 Unit Price incl. VAT
15
OIL PICKUP ASSEMBLY
1202663
$104,99 Unit Price incl. VAT
16
EXPANSION PLUG; 48 MM
3060004
9999999
Not Available
17
HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM
7517792
$4,19 Unit Price incl. VAT
18
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
19
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
20
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT

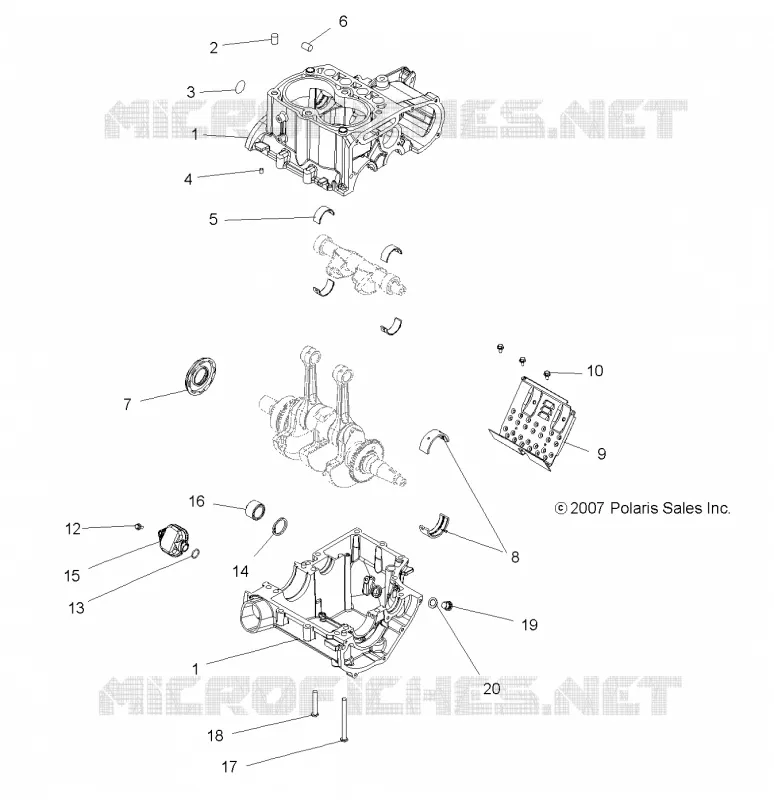

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
