COOLING SYSTEM for POLARIS SPORTSMAN 800 EFI - A13MH76AD/AX/AZ from 2013

COOLING SYSTEM

1

FAN ASSEMBLY; 11 INCHES; ATV

2410413

$493,49 Unit Price incl. VAT

2

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

3

PRESSURE CAP

1240508

$89,24 Unit Price incl. VAT

4

SCREW

7512084

$2,09 Unit Price incl. VAT

5

FILLER-REMOTE COOLANT 2FITTING

5438110

9999999

Not Available

6

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

7

FILLER NECK HOSE

5414229

9999999

Not Available

8

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

9

RADIATOR HOSE; LOWER

5414222

$62,99 Unit Price incl. VAT

10

CONDUIT-FLEX 1.25 ID PE 17CM

552179417

Not Available

11

ENGINE HOSE; LOWER

5414220

$104,99 Unit Price incl. VAT

12

CONDUIT-FLEX 1.25 ID PE 17CM

552179417

Not Available

13

FAN SHROUD

5437845

9999999

Not Available

14

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

15

HOSE-RADIATOR UPPER

5414219

9999999

Not Available

16

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

17

SCREW

7515179

$4,19 Unit Price incl. VAT

18

VGT RADIATOR ASSEMBLY; 324 X 360

1240521

$850,49 Unit Price incl. VAT

19

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

20

FUEL LINE; 1/4 ID

84500031525

Not Available

21

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

22

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

23

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

24

OVERFLOW BOTTLE WITH FITTING CAP

5437635

$9,44 Unit Price incl. VAT

25

GASKET

5810279

$4,19 Unit Price incl. VAT

26

CONNECTOR-TEE 1 1 1 BARBED

7052373

$19,94 Unit Price incl. VAT

27

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

28

1/4 SAEJ2002;EPDM HOSE;600CM

8450120600

Not Available

29

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

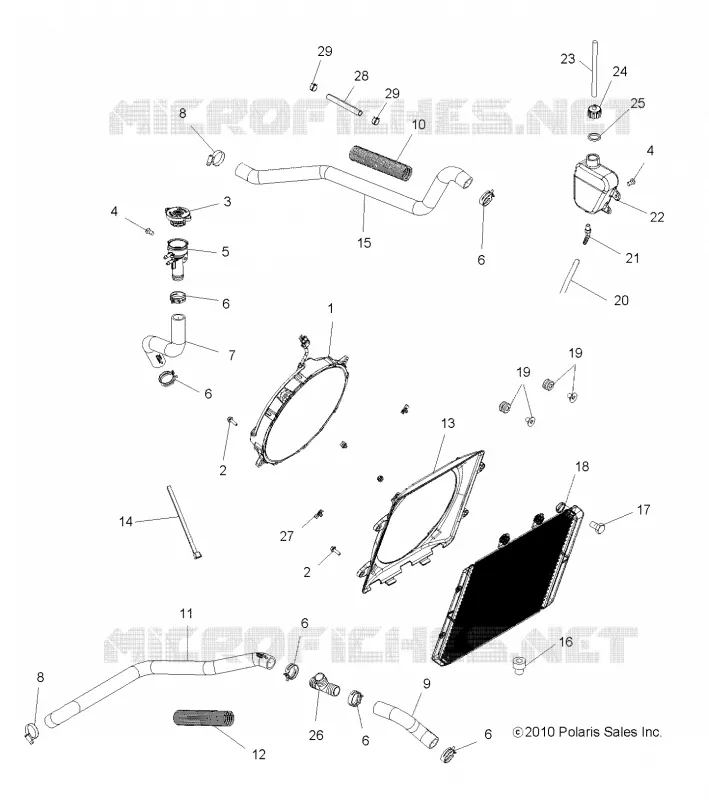

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
