1
Engine displacement
autre
2
Year
1994
3
Trim
SPORT - 0940443
4
Parts Catalog
CONSOLE SPORT 0940443 AND SPORT SKS 0940243 (4925052505004A)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505003A)
by
NOSEPAN ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505005A)
CONSOLE SPORT 0940443 AND SPORT SKS 0940243 (4925052505004A)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
1
CONSOLE
5222756067
Not Available
2
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
3
CHOKE CABLE
7080290
$194,24 Unit Price incl. VAT
4
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
5
HOUSING 1 CIRCUIT
4020153
9999999
Not Available
6
HOUSING
4020057
9999999
Not Available
7
HOUSING SOCKET
4020133
9999999
Not Available
8
HARNESS MAIN WIRE (Trail)
2460429
Not Available
9
DECAL CONSOLE [No Longer Available]
7072973
Not Available
10
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
11
REGULATOR VOLTAGE-LR8
4060092
2203873
$188,99 Unit Price incl. VAT
12
HEAT SINK
5210650
9999999
Not Available
13
SCREW
7512031
9999999
Not Available
14
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
15
CAP W/KEY
5410611
9990000
Not Available
16
KIT IGN. SWITCH
2200357
9999999
Not Available
17
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
18
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
19
RIVET (50)
7621477
9999999
Not Available
20
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
21
BRKT ROPE GUIDE BLK.
5222682067
Not Available

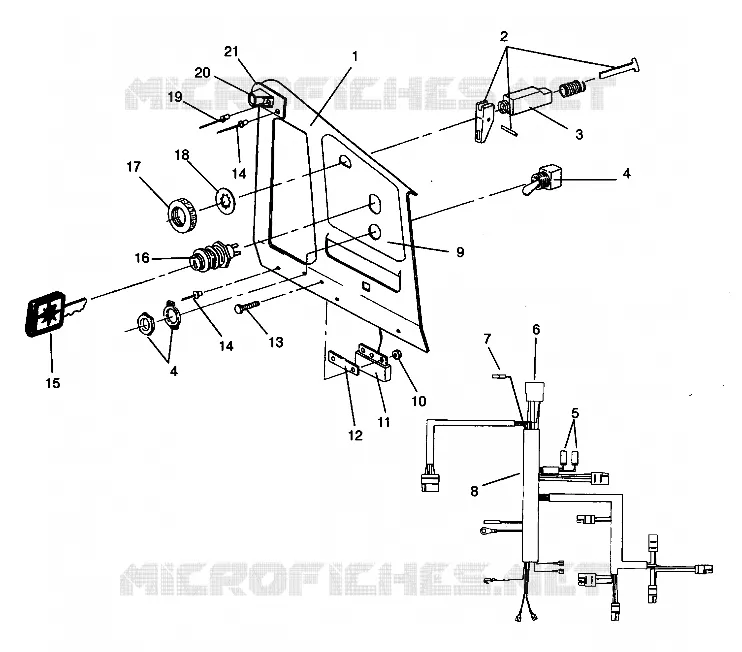

Find the detailed CONSOLE SPORT 0940443 AND SPORT SKS 0940243 (4925052505004A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
