BRAKE LINES for POLARIS SCRAMBLER XP 1000 from 2017

BRAKE LINES

1

SEAL

5413212

9999999

Not Available

2

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

3

LINE-BRAKE POD TO J/B

1911393

$152,24 Unit Price incl. VAT

4

CROSS FITTING

7052372

9999999

Not Available

5

LINE-BRAKE REAR 2UP

1911424

$451,49 Unit Price incl. VAT

6

BRKT-JUNCTION BLOCK;COMMON

5257768

$19,94 Unit Price incl. VAT

7

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

8

CALIPER BRAKE LINE; FRONT

1911668

9999999

Not Available

9

SCREW

7512024

$9,44 Unit Price incl. VAT

10

LINE-BRAKE JB TO FT MC

1911669

1911669-CO

$157,49 Unit Price incl. VAT

11

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

12

WIRE/TUMB CLAMP; .25

7081246

$2,09 Unit Price incl. VAT

13

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

14

SCR-10-24X1/2 PH/TX/TRIRD/SEMB

7518176

$9,44 Unit Price incl. VAT

15

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

16

CLIP ROUTING .472 B.D. HINGED

7670116

$10,49 Unit Price incl. VAT

17

CLAMP CABLE

7080499

$10,49 Unit Price incl. VAT

18

POP RIVET

7621330

$2,09 Unit Price incl. VAT

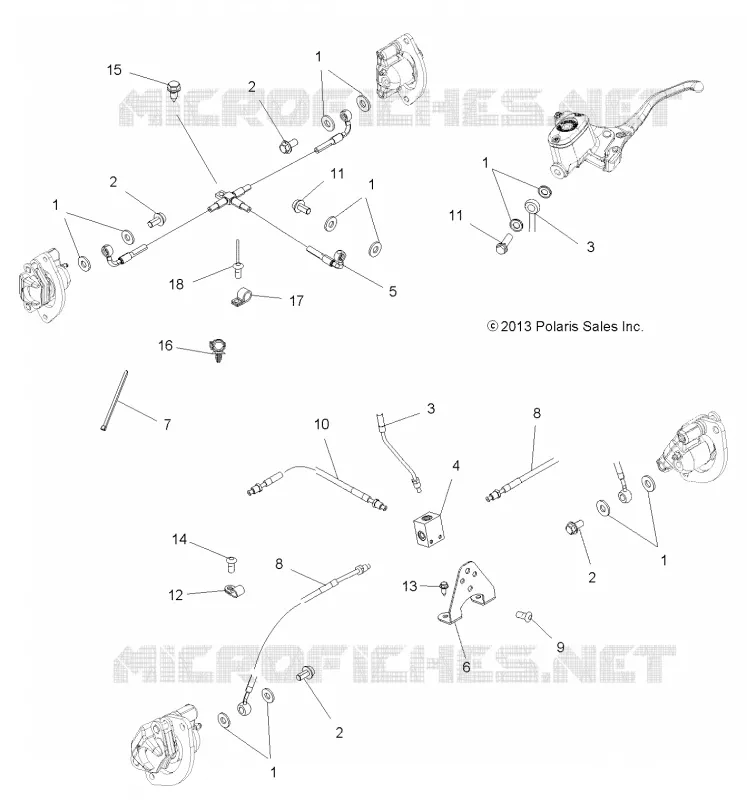

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
