ENGINE MOUNTING TRAIL BOSS W948527 (4926822682A008) for POLARIS TRAIL BOSS - W948527 from 1994

ENGINE MOUNTING TRAIL BOSS W948527 (4926822682A008)

1

MOUNT MOTOR

3110026

9999999

Not Available

2

MOTOR MOUNT INSULATOR

5430802

9999999

Not Available

3

BOLT

7515321

9999999

Not Available

4

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

5

MOUNT ENG.TOP

5220471067

Not Available

6

WASHER

7555801

$7,34 Unit Price incl. VAT

7

NUT LOCK

7542403

9999999

Not Available

9

BOLT

7512566

9999999

Not Available

10

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

11

WASHER

5210748

$7,34 Unit Price incl. VAT

12

BUSHING

5430261

$13,64 Unit Price incl. VAT

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

BR8ES SPARK PLUG; NGK(4)

3070156

$7,34 Unit Price incl. VAT

15

INSUL.CABLE SOL.

5410346

9999999

Not Available

16

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

17

CLUTCH INTAKE BOOT

5410421

9999999

Not Available

18

WASHER SPRINGLOCK

7553001

7552603

$1,56 Unit Price incl. VAT

19

SCREW

7512490

$7,34 Unit Price incl. VAT

20

PLATE FR.MTR.MT.

5220881067

Not Available

21

ENG.EC25PF-08 Substituted by 3084717

1211534

Not Available

22

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

23

CHECKVALVE VENT

7052047

9999999

Not Available

24

FITTING; TEE

7052005

9999999

Not Available

25

MOUNT REAR

5220757067

Not Available

26

MOUNT ENGINE

3110028

9999999

Not Available

27

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

28

FUEL LINE3/16 ID(600 CM.)

8450042600

Not Available

29

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

30

CABLE GROUND/ENG.

4010067

9999999

Not Available

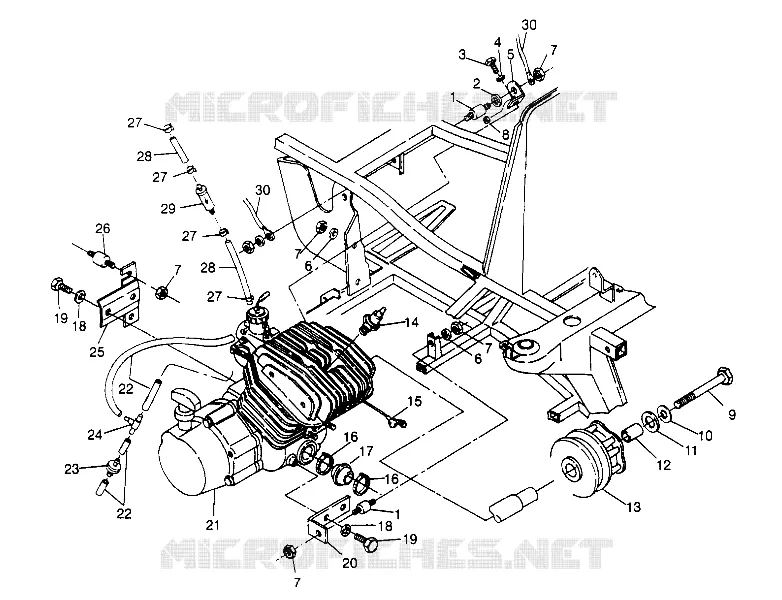

Find the detailed ENGINE MOUNTING TRAIL BOSS W948527 (4926822682A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
