STEERING/A-ARM TRAIL BOSS W948527 (4926822682B005) for POLARIS TRAIL BOSS - W948527 from 1994

STEERING POST ASSEMBLY TRAIL BOSS W948527 (4926822682B004)

STEERING/A-ARM TRAIL BOSS W948527 (4926822682B005)

1

TIE ROD ASM. Substituted by 1822307

1822070

Not Available

2

ROD END; RH

7060138

9999999

Not Available

3

NUT; RH; 10 MM.

7546901

9999999

Not Available

4

TIE ROD

5020478

9999999

Not Available

5

NUT LH 10 MM.

7546902

9999999

Not Available

6

ROD END

7060147

9999999

Not Available

7

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

8

NUT CASTLE(10)

7546904

9999999

Not Available

9

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

BALL JOINT

7080364

7061306

$52,49 Unit Price incl. VAT

12

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

13

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

14

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

15

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

16

KIT A-FRAME LH

2200477

9999999

Not Available

16

KIT A-FRAME RH

2200478

9999999

Not Available

17

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

18

SHAFT A-ARM(2X4)

5020680

9999999

Not Available

19

A-ARM SPACER BUSHING

5020677

$19,94 Unit Price incl. VAT

20

BUSHING A-ARM LONG.

5431596

5436973

$9,44 Unit Price incl. VAT

21

BOLT(10)

7515458

7512492

$2,09 Unit Price incl. VAT

22

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

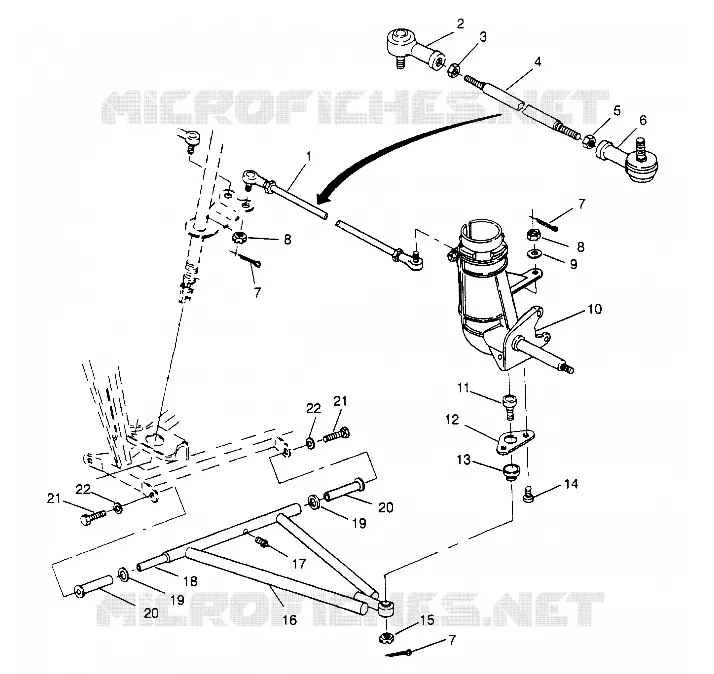

Find the detailed STEERING/A-ARM TRAIL BOSS W948527 (4926822682B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
