STEERING, H-BAR, STEERING POST, TIE ROD

1

HANDLEBAR COVER

5438523

$47,24 Unit Price incl. VAT

2

SOCKET HEAD SCREW; 6 MM X 45 MM

7518931

$4,19 Unit Price incl. VAT

3

HANDLEBAR MOUNT BLOCK

5631729

$62,99 Unit Price incl. VAT

4

HANDLEBAR; MEDIUM GLOSS BLACK

5255234067

Not Available

5

PLUG

5431096

$3,66 Unit Price incl. VAT

6

HANDLEBAR GRIP; STD; GLOSS BLACK

5452127070

Not Available

7

HANDLEBAR BLOCK

5631892

$62,99 Unit Price incl. VAT

8

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

9

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

10

STRAP-STRG

5254513

9999999

Not Available

11

STEERING POST BUSHING

5438492

$11,54 Unit Price incl. VAT

12

BRUSHING SPACER

5137796

$7,34 Unit Price incl. VAT

13

STEERING POST ASSEMBLY; 550

1823895

$314,99 Unit Price incl. VAT

14

MOUNT-STEERING ;UPPER

5255066

$62,99 Unit Price incl. VAT

15

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

16

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

17

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$11,54 Unit Price incl. VAT

18

FLANGETTE

5222393

5270869

$36,74 Unit Price incl. VAT

19

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

20

STEERING MOUNT ASSEMBLY; LOWER

1018400

$83,99 Unit Price incl. VAT

21

ROD END; LEFT; 10 MM X 23 MM; 75 DEG

7061165

$104,99 Unit Price incl. VAT

21

NUT-M10X1.5 LH ZOD

7547431

$6,29 Unit Price incl. VAT

22

TIE ROD; 469 MM

5336789

$73,49 Unit Price incl. VAT

23

ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG

7061166

$104,99 Unit Price incl. VAT

23

NUT-M10X1.5 ZOD

7547430

9999999

Not Available

24

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

25

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

26

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

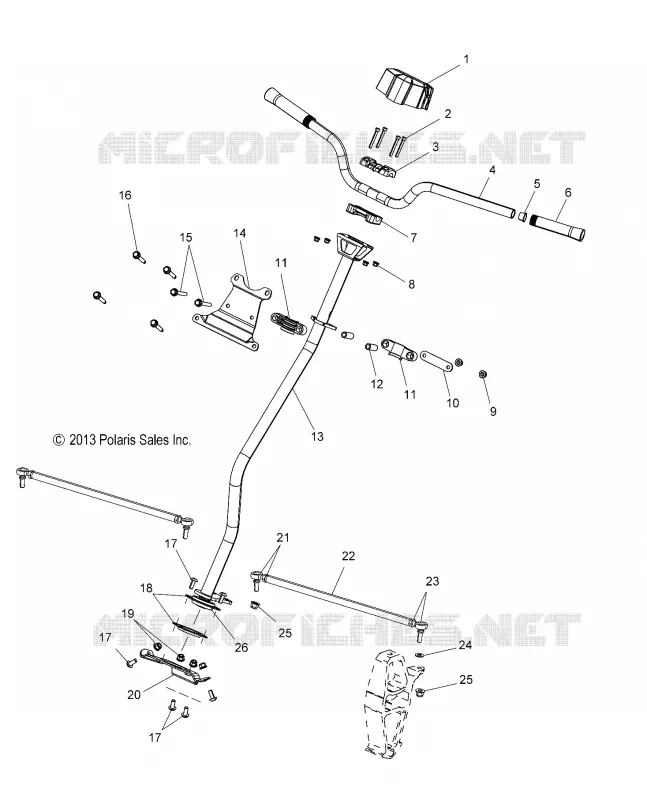

Find the detailed STEERING, H-BAR, STEERING POST, TIE ROD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
