1
Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
WATER PUMP/FUEL PUMP
by
TOOL KIT
CARBURETOR
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
9999999
Not Available
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E-RING
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130423
9999999
Not Available
6
THROTTLE VALVE; 3.0
3130372
$104,99 Unit Price incl. VAT
7
NEEDLE JET
3130160
9999999
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CARBURETOR
3130711
$818,99 Unit Price incl. VAT
10
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
11
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
12
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
13
NEEDLE VALVE; 1.5
3131146
$99,74 Unit Price incl. VAT
14
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
15
CAP
3130237
$8,39 Unit Price incl. VAT
16
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
17
WASHER
3130014
$3,14 Unit Price incl. VAT
18
HEX HEAD MAIN JET; #195
3130122
9999999
Not Available
19
O-RING
3130239
9999999
Not Available
20
FITTING SEDIMENT
5020476
9999999
Not Available
21
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
22
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
23
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
24
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
25
JET PILOT #35(10)
3130066
9999999
Not Available
26
SPRING AIR ADJUST
3130012
9999999
Not Available
27
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
28
SCREW THROTTLE STOP
3130009
9999999
Not Available
29
SPRING
3130010
$18,89 Unit Price incl. VAT
30
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
31
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
32
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT

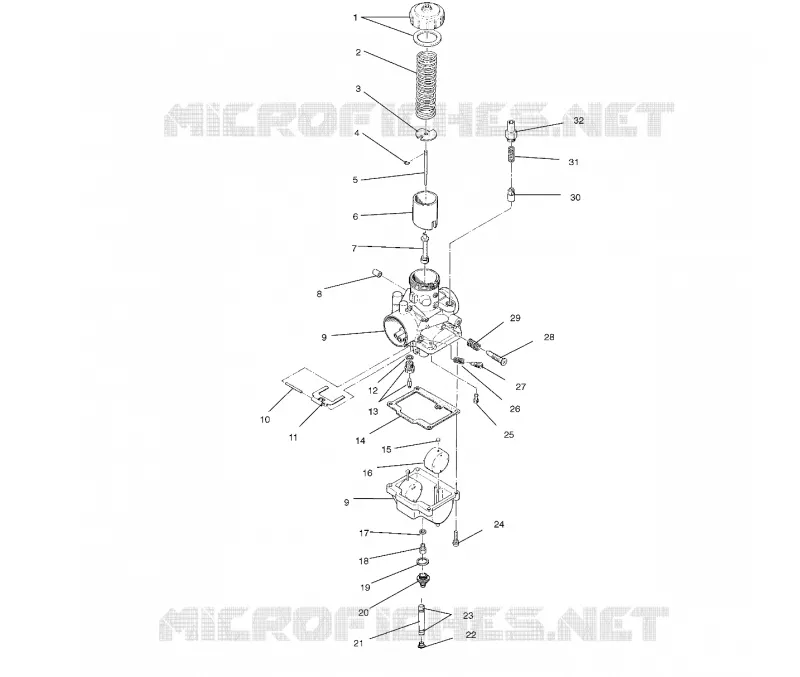

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
