CLUTCH COVER for POLARIS SPORTSMAN 570 UTILITY HD from 2019

CLUTCH COVER

1

CLUTCH COVER ASSEMBLY; INNER

2634896

$194,24 Unit Price incl. VAT

2

INNER CLUTCH COVER SEAL

5414727

$110,24 Unit Price incl. VAT

3

CLUTCH COVER SEAL; OUTER

5521738

5526450

$78,74 Unit Price incl. VAT

4

TIE STRAP; 14 IN; SLINGSHOT

7082260

$10,49 Unit Price incl. VAT

5

BOLT ASSEMBLY; WASHER

7517599

$10,49 Unit Price incl. VAT

6

SCREW

7517312

$2,09 Unit Price incl. VAT

7

WASHER

7555748

$9,44 Unit Price incl. VAT

8

CLUTCH COVER ASSEMBLY; OUTER

2634897

$346,49 Unit Price incl. VAT

9

O RING-.364X.504X.07

5410542

5411432

$9,44 Unit Price incl. VAT

10

DRAIN PLUG

5434264

$10,49 Unit Price incl. VAT

11

WORM DRIVE CLAMP

7081626

$14,69 Unit Price incl. VAT

12

CLUTCH INTAKE COVER; BAFFLE

5450420

$173,24 Unit Price incl. VAT

13

SCREW

7512026

$2,09 Unit Price incl. VAT

14

DUCT BOOT; CLUTCH

5414768

$31,49 Unit Price incl. VAT

15

WORM DRIVE CLAMP

7081626

$14,69 Unit Price incl. VAT

16

SCR-#14X1-1/4 HI/LO/TAPER-Y

7519849

$6,29 Unit Price incl. VAT

17

AIR INLET CLUTCH DUCT

5451155

$115,49 Unit Price incl. VAT

18

DUCT OUTLET CLUTCH

5450546

$104,99 Unit Price incl. VAT

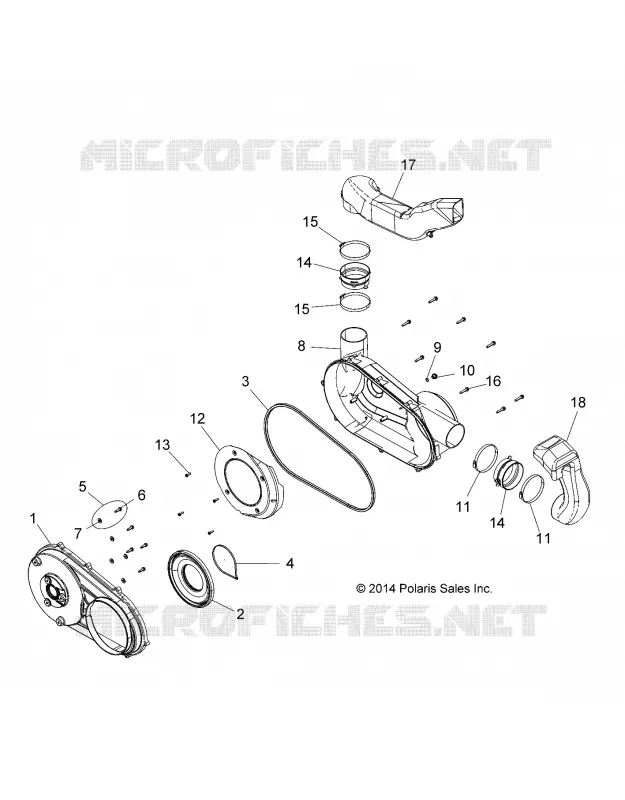

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
