REAR BRAKE CALIPER for POLARIS SPORTSMAN 570 UTILITY HD from 2019

REAR BRAKE CALIPER

1

DUAL INPUT CALIPER ASSEMBLY

1911415

$488,24 Unit Price incl. VAT

2

REAR DUAL INPUT BRAKE PADS KIT

2204088

$49,13 Unit Price incl. VAT

3

BRAKE PISTON

5136698

$83,99 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

RING MOLDED

5410766

$20,99 Unit Price incl. VAT

6

CALIPER SEAL; INNER; 1.50 IN

5412010

$13,64 Unit Price incl. VAT

7

CALIPER SEAL; OUTER; 1.50 IN

5412011

$13,64 Unit Price incl. VAT

8

PIN BUSHING BOOT

5412505

$6,29 Unit Price incl. VAT

9

PIN SEAL BOOT

5412506

$6,29 Unit Price incl. VAT

10

ASM-CALIPER MOUNT;RR;DIC

1911416

9999999

Not Available

11

BLEEDER SCREW

7080352

$5,76 Unit Price incl. VAT

12

SCR-3/8-24X5/16 SOC SET-Y

7515489

$10,49 Unit Price incl. VAT

13

BOLT

7512457

$7,34 Unit Price incl. VAT

14

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

15

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

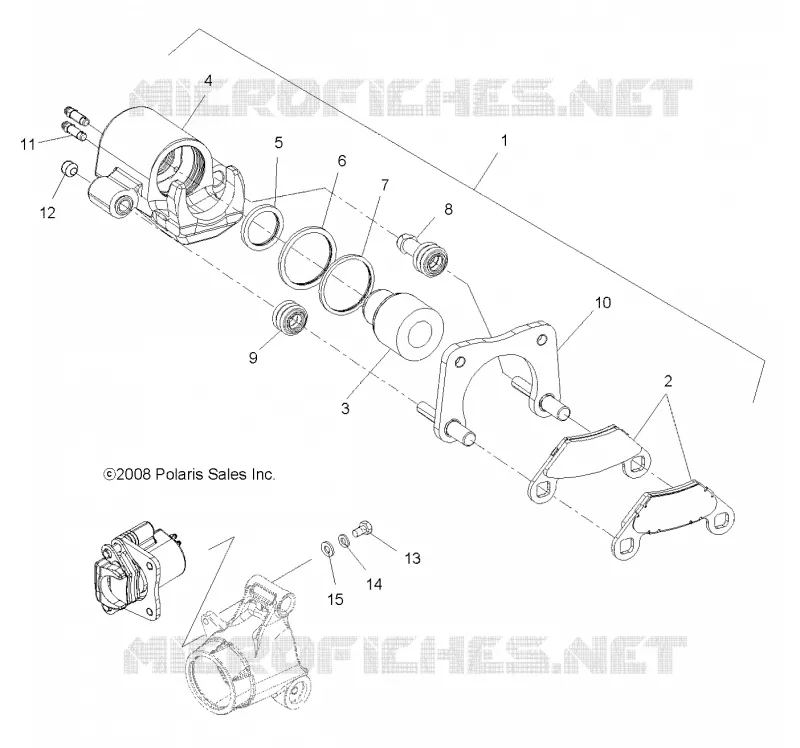

Find the detailed REAR BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
