Parts Catalog
BODY, CLUTCH COVER AND DUCTING
5

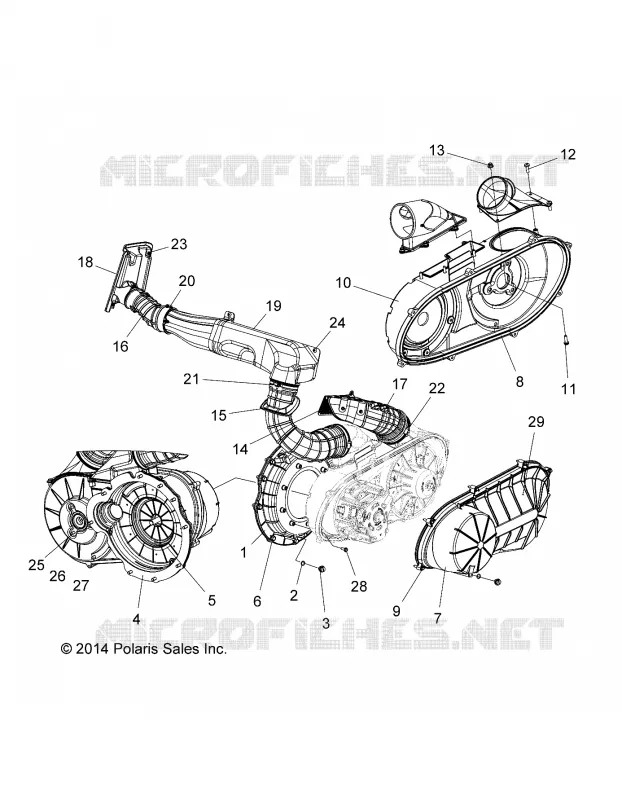

Parts Diagram
Parts Catalog
CARGO BOX
by
DECALS
BODY, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
1
FLYWHEEL COVER ASSEMBLY
2635432
9999999
Not Available
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
4
FLYWHEEL COVER SEAL
5814108
$73,49 Unit Price incl. VAT
5
CLUTCH COVER SEAL; INNER
5814109
9999999
Not Available
6
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
7
CLUTCH COVER ASSEMBLY; OUTER
2635337
9999999
Not Available
8
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
9
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
10
CLUTCH COVER ASSEMBLY; INNER
2635338
9999999
Not Available
11
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
12
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
13
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
14
BELT SCREEN BRACKET
5256957
$62,99 Unit Price incl. VAT
15
HOSE-CLUTCH AIR INLET
5414565
9999999
Not Available
16
INTAKE CLUTCH HOSE
5414854
$89,24 Unit Price incl. VAT
17
HOSE-CLUTCH AIR OUTLET DSL
5415152
9999999
Not Available
18
FENDER INTAKE; REAR
5450695
9999999
Not Available
19
INTAKE CLUTCH DUCT
5451066
9999999
Not Available
20
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
21
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
22
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
23
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
24
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
25
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
26
SCR-TFHFL-M6X1.0X20 ZOD
7519279
$19,94 Unit Price incl. VAT
27
WASHER
7555748
$9,44 Unit Price incl. VAT
28
SCR-HXFL-M6X20 ZOD HI LO
7520055
$10,49 Unit Price incl. VAT
29
DECAL-BELT CAUTION/CHECK
7177469
Not Available
