HOOD AND FRONT FASCIA for POLARIS RANGER 1000 DIESEL CREW from 2016

HOOD AND FRONT FASCIA

1

BUMPER SCREEN; UPPER; GLOSS BLACK

5439016070

Not Available

2

FRONT FASCIA; GLOSS BLACK

5439018070

Not Available

3

FENDER; FRONT; LEFT SIDE; SB GRN MTLC

5439009498

Not Available

4

RIGHT HAND FRONT FENDER; SB GRN MTLC

5439010498

Not Available

5

FENDER FLARE; FRONT; LEFT; GLOSS BLACK

5439011070

Not Available

6

FENDER FLARE; FRONT; RIGHT; GLOSS BLACK

5439012070

Not Available

7

CENTER ACCESS HOOD; SB GRN MTLC

5439023498

Not Available

8

BOLT

7519650

$7,34 Unit Price incl. VAT

9

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

10

HOOD LINER

5439025070

Not Available

11

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

12

RUBBER GROMMET; MOUNT; 25 IN.

5412504

$7,34 Unit Price incl. VAT

13

BRKT-MNT DASH GALV

5258201

9999999

Not Available

14

BRKT-MNT DASH GALV

5258205

9999999

Not Available

15

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

16

SHIFT LEVER GROMMET

5414249

$41,99 Unit Price incl. VAT

17

CUP HOLDER

5436836

$36,74 Unit Price incl. VAT

18

CONTROLS DASH PANEL; GLOSS BLACK

5439013070

Not Available

19

HOLE PLUG

7080416

$12,59 Unit Price incl. VAT

20

UPPER DASH PANEL; GLOSS BLACK

5439014070

Not Available

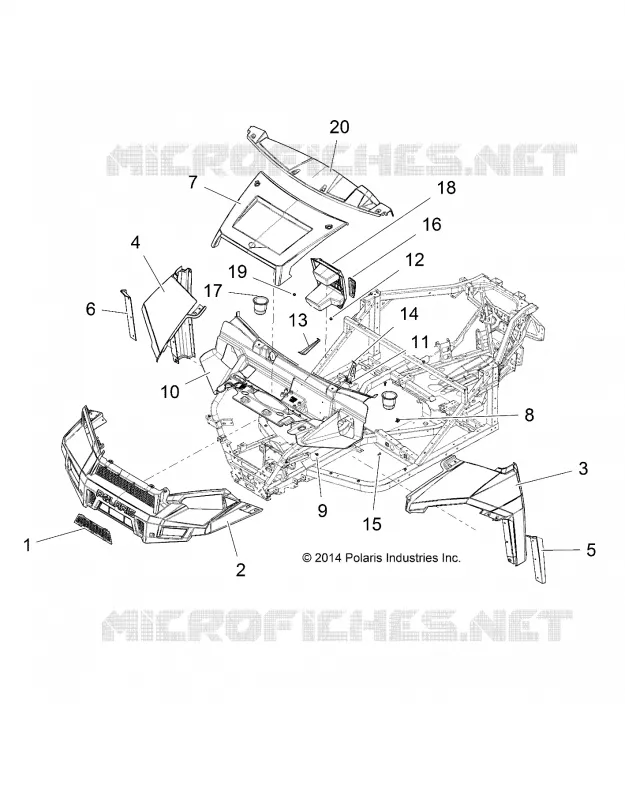

Find the detailed HOOD AND FRONT FASCIA POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
