Parts Catalog

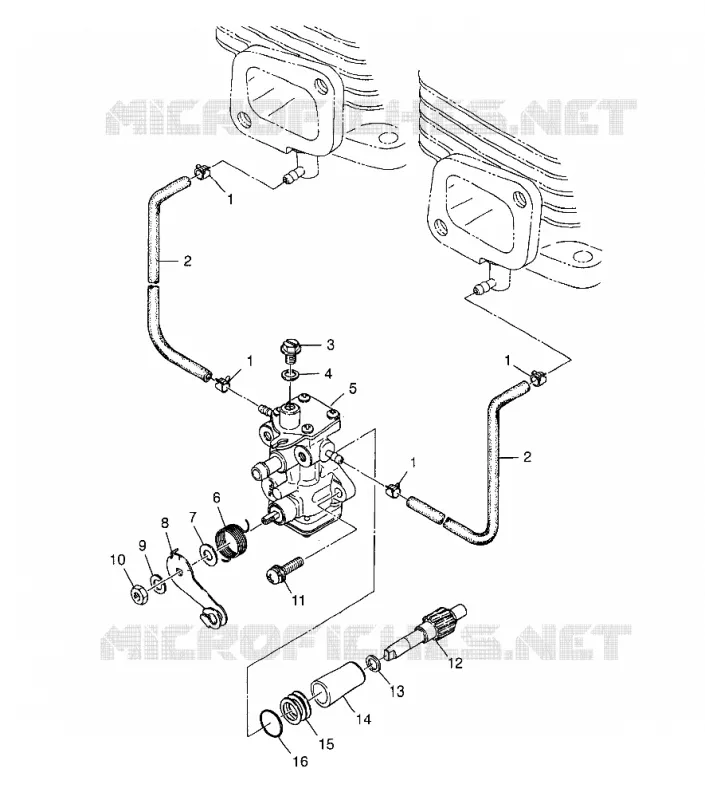

OIL PUMP LITE 0983433 AND LITE DELUXE 0983431 (4941864186C009)
5
Parts Diagram
Parts Catalog
FUEL PUMP LITE 0983433 AND LITE DELUXE 0983431 (4941864186C008)
by
HOOD
OIL PUMP LITE 0983433 AND LITE DELUXE 0983431 (4941864186C009)
1
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
2
PIPE ASSEMBLY; VINYL; 90 MM
3084467
8450188
$20,99 Unit Price incl. VAT
3
SCREW-AIR VENT
3083125
9999999
Not Available
4
PACKING(10)
3083126
9999999
Not Available
5
PUMP OIL
3084255
9999999
Not Available
6
SPRING-RETURN
3083123
9999999
Not Available
7
COLLAR CAMSHAFT(10)
3083445
9999999
Not Available
8
LEVER CONTROL
3084256
9999999
Not Available
9
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
10
NUT(10)
3083120
9999999
Not Available
11
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
12
GEAR; SMALL
3083600
9999999
Not Available
13
SPACER
3083130
9999999
Not Available
14
BUSHING
3083599
9999999
Not Available
15
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
15
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
15
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
16
O-RING
3083127
9999999
Not Available

Find the detailed OIL PUMP LITE 0983433 AND LITE DELUXE 0983431 (4941864186C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
