1
Engine displacement
autre
2
Year
1998
3
Trim
LITE DELUXE - 0983431
4
Parts Catalog
NOSEPAN CONSOLE
5
Parts Diagram
Parts Catalog
TUNNEL AND SEAT
by
BRAKE
NOSEPAN CONSOLE
1
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
2
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
3
HEAT SINK
5210650
9999999
Not Available
4
RECTIFIER LR-4
4060104
9999999
Not Available
5
CABLE;CHOKE
7080661
9999999
Not Available
5
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
6
IGNITION SWITCH
4110038
9999999
Not Available
6
SWITCH-E/S
4110061
9999999
Not Available
7
DECAL FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Not Available
8
SEAL; O RING;
5410374
9999999
Not Available
9
LOUVER INTAKE
5431211070
Not Available
10
FOAM INTAKE
5810458
9999999
Not Available
11
CONSOLE
5431157070
Not Available
11
CONSOLEBLK(94DLX.)
5431636
9999999
Not Available
12
SWITCH ROCKER W/INDIC.
4110195
9999999
Not Available
13
NUT IGNITION (10)
7547034
9999999
Not Available
14
IGNITION KEY
5410378
9999999
Not Available
15
INDICATOR LOW-OIL WARN.
4040012
9999999
Not Available
16
INDICATOR ACC WARN.
4040014
9999999
Not Available
17
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
18
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
19
BOLT
7517468
9999999
Not Available
20
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
21
RIVET (10)
7621336
$3,14 Unit Price incl. VAT
22
WASHER (10)
7555727
9999999
Not Available
23
CONSOLE INNER
5431214070
Not Available
24
STRAP TOOL COMPARTMENT
5410425
9999999
Not Available
25
RIVET
7621472
$2,09 Unit Price incl. VAT
26
TAPE FOIL
5810478
9999999
Not Available
27
DART CLIP
7670067
$7,34 Unit Price incl. VAT
28
TAPE FOIL(PAN)
5810482
9999999
Not Available
29
RIVET
7621457
$2,09 Unit Price incl. VAT
30
COVER; RH SHOCK
5431253
9999999
Not Available
30
COVER LH SHOCK
5431252
Not Available
31
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
32
NOSEPAN RH BLK.
5431156070
Not Available
33
TAPE FOIL
5810477
Not Available
34
TAPE FOIL
5810475
Not Available
35
RIVET
7621467
$2,09 Unit Price incl. VAT
36
SCREEN
5211267067
Not Available
37
NOSEPAN CTR.
5431154070
Not Available
38
U TYPE CLIP
7670040
$7,34 Unit Price incl. VAT
39
TAPE FOIL
5810509
9999999
Not Available
40
HINGE LOWER BLK.
2635010067
Not Available
41
SCREW
7512297
$10,49 Unit Price incl. VAT
42
NOSEPAN LH BLK.
5431155070
Not Available
43
CATCH HOLE PLUG
5410582
$15,74 Unit Price incl. VAT
44
REFLECTOR AMBER
2670071
9999999
Not Available
45
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
46
STRAP HOOD
5410573
9999999
Not Available
47
SUPPORT CLUTCH GD BLK.
5222332067
Not Available
48
RIVET(50)
7621449
9999999
Not Available
49
PLATE CLUTCHGUARD BLK.
5211249067
Not Available
50
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
51
BRKTLH PANBRACEBLK.
5222339067
Not Available
51
BRKT RH PANBRACE BLK.
5222340067
Not Available
52
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
53
RIVET
7621479
$3,66 Unit Price incl. VAT
54
TAPE FOIL
5810476
Not Available
55
BRKT RH BUMP.BRACE BLK.
5222346067
Not Available
55
BRKT LH BUMP.BRACE BLK.
5222345067
Not Available
56
BRKT SUPPORT BLK.
5222356067
Not Available
57
SHIELD NOSEPAN DRAIN HOLE
5811078
9999999
Not Available
58
PIN
5224440
9999999
Not Available
59
DECAL ENGINE AND CLUTCH(CPSC)
7075350
9999999
Not Available
60
GUARD CLUTCH
5230124
9999999
Not Available
61
PIN FRONT
7080311
9999999
Not Available

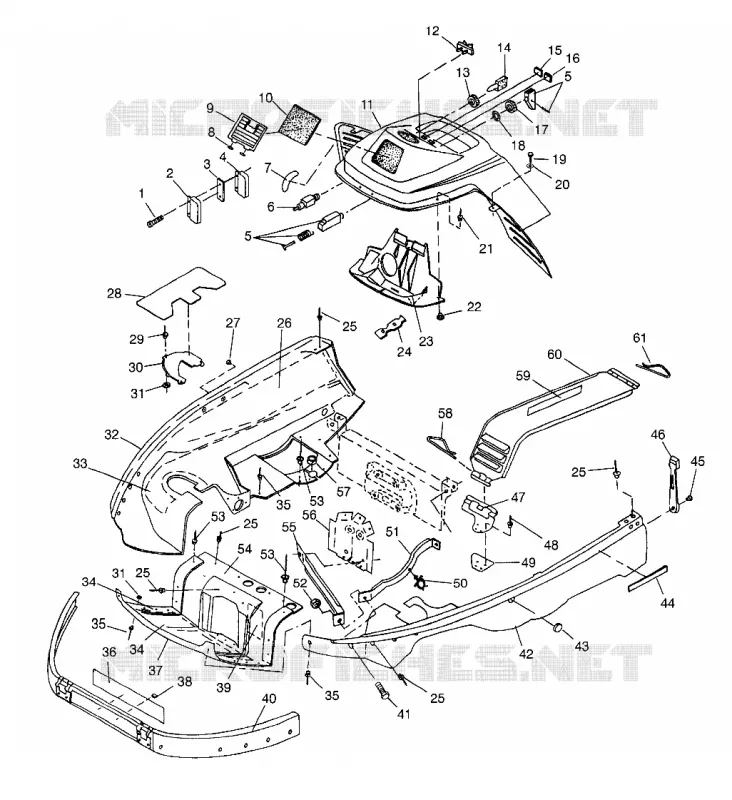

Find the detailed NOSEPAN CONSOLE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
