1
Engine displacement
autre
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog
WATER PUMP 500 XLT (4921662166036A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 500 XLT (4921662166029A)
by
CARBURETOR 500 XLT (4921662166037A)
WATER PUMP 500 XLT (4921662166036A)
1
2
3
4
5
6
7
8
9
1
PUMP WATER
3084458
9999999
Not Available
2
SCREW&WASHER ASM.(10)
3084221
9999999
Not Available
3
O-RING
3084461
9999999
Not Available
4
BOLT&WASHER ASM.
3083370
9999999
Not Available
5
WASHER
3082505
9999999
Not Available
6
PULLEY DRIVE
3084462
9999999
Not Available
7
BELT
3082747
9999999
Not Available
8
O-RING
3084459
9999999
Not Available
9
CASING 2PUMP
3084460
9999999
Not Available

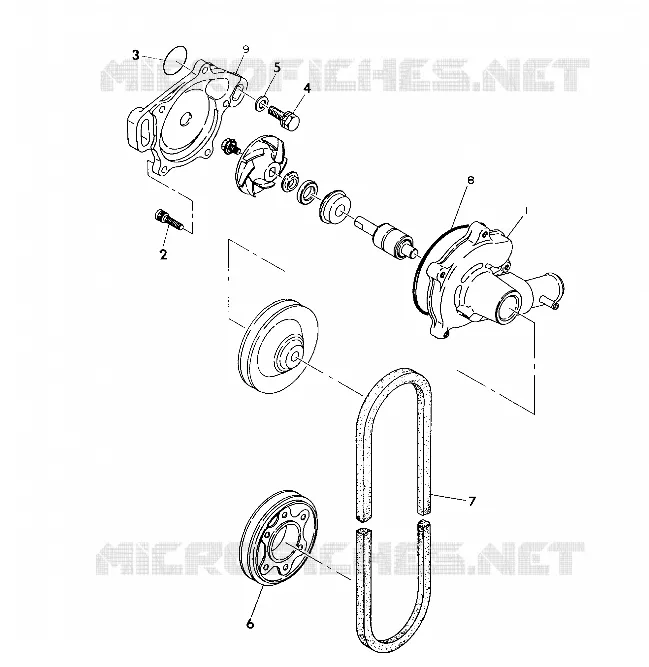

Find the detailed WATER PUMP 500 XLT (4921662166036A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
