ELECTRICAL, MODULES AND CONTROLLERS for POLARIS RANGER 48V EV MIDSIZE/INTL - R13RC08GA/GH/FA/FH from 2013

HEADLIGHTS, TAILLIGHTS AND BULBS

ELECTRICAL, MOTOR, 48 VAC

ELECTRICAL, MODULES AND CONTROLLERS

1

FUSE-750A SEVCON

4013273

9999999

Not Available

1

CONTROLLER ASSEMBLY; 48 V

4013361

$3 669,74 Unit Price incl. VAT

2

ONBOARD REFRESH CHARGER; 48 V

4014035

$2 042,24 Unit Price incl. VAT

3

48V CONTACTOR ASSEMBLY

4012818

$451,49 Unit Price incl. VAT

4

NUT-U CLIP;CHIMNEY;M8X1.25

7547476

9999999

Not Available

5

NUT-M8X1.25 HXFLG NYLON INS

7547317

7548028

$5,24 Unit Price incl. VAT

6

MOUNTING BRACKET CONTROLLER

5253457

9999999

Not Available

7

BOLT-M6X1.0X25 TORX PNHD BLK

7518535

$7,34 Unit Price incl. VAT

8

SCR-HXFL-M6X1.0X50 TDFM ZPB

7519090

$7,34 Unit Price incl. VAT

9

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

10

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

11

BRKT-MOUNTING CHARGER M BLK

5253458458

Not Available

12

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

13

RELAY SOLID STATE 9A

4012829

4081742

$141,74 Unit Price incl. VAT

14

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

15

SCREW 1/4-20 TORX

7518375

$2,09 Unit Price incl. VAT

16

CONVERTER; 48 VDC/12VCD

4013453

$871,49 Unit Price incl. VAT

17

VEHICLE CONTROL MODULE

4012812

$965,99 Unit Price incl. VAT

18

WASHER-INT/EXT LOCK 5/16

7556560

$7,34 Unit Price incl. VAT

19

BOLT-M6X1.0X35 HXFLG/SH-OLV D

7518612

$9,44 Unit Price incl. VAT

20

CHARGING CABLE

4012836

$104,99 Unit Price incl. VAT

21

DC/DC CONVERTER BRACKET

5255330

$83,99 Unit Price incl. VAT

22

STUD 8 MM X 1.25 MM X 14 MM X

7519183

$41,99 Unit Price incl. VAT

23

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

24

NUT-HEX JAM 5/16-24 GR2 STL ZC

7547469

$5,24 Unit Price incl. VAT

25

WSHR-8.5X14.8X1.9 ZPC

7556528

$7,34 Unit Price incl. VAT

26

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

27

HEAT SHRINK-1 IDX2.5 ;4 1

5521655

$15,74 Unit Price incl. VAT

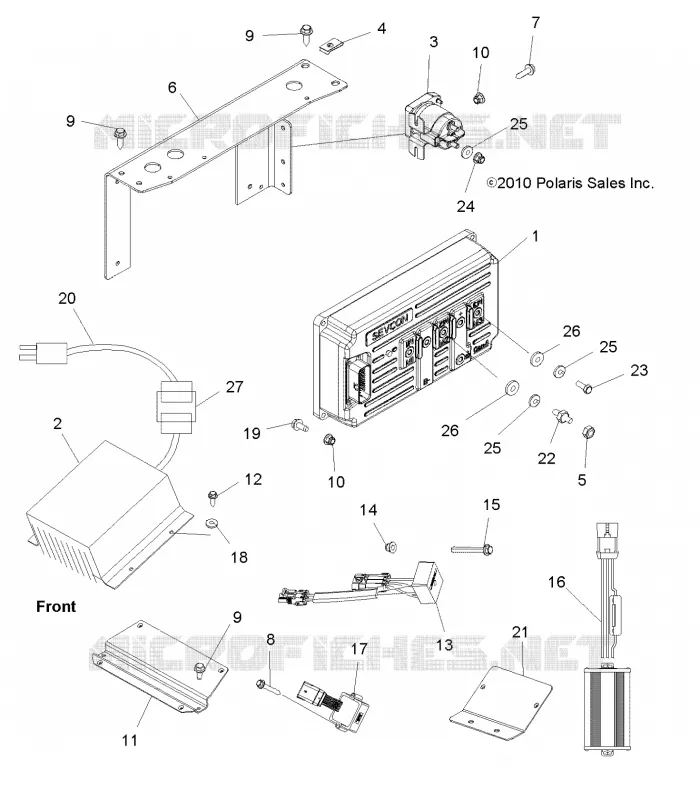

Find the detailed ELECTRICAL, MODULES AND CONTROLLERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
