REAR SUSPENSION for POLARIS RANGER 48V EV MIDSIZE/INTL - R13RC08GA/GH/FA/FH from 2013

FRONT SUSPENSION STRUT

REAR SUSPENSION STABILIZER BAR

REAR SUSPENSION

1

SCREW M10 X 1.25-6G

7519043

$17,84 Unit Price incl. VAT

2

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

3

73.96 MM. PIVOT SHAFT

5137591

$10,49 Unit Price incl. VAT

4

A-ARM BUSHING; SHORT; BLACK

5439270

$4,19 Unit Price incl. VAT

5

RETAINER SPRING; STEEL

5251753

$19,94 Unit Price incl. VAT

6

M10 X 1.25 X 60 SCREW

7518563

$5,76 Unit Price incl. VAT

7

TORSION BAR; 210 MM

5135941

1543853

$136,49 Unit Price incl. VAT

8

SHOCK; REAR

7043592

$283,49 Unit Price incl. VAT

9

SPRING; REAR; MATTE BLACK

7043706458

Not Available

10

CAM ADJUSTING SPRING STEEL

5253768

$68,24 Unit Price incl. VAT

11

CONTROL ARM WELD; UPPER; MATTE BLACK

1018189458

Not Available

12

PIVOT SHAFT

5137592

$12,59 Unit Price incl. VAT

13

CAP SCREW

7512365

$2,09 Unit Price incl. VAT

14

BOLT M10 X 1.25 X 140

7518562

$13,64 Unit Price incl. VAT

15

WELD-CONTROL ARM; LOWER; MATTE BLACK

1018190458

Not Available

16

WHEEL CARRIER BEARING; MACHINED

5134531

$182,69 Unit Price incl. VAT

16

WHEEL CARRIER BEARING; LEFT; MACHINED

5134741

$182,69 Unit Price incl. VAT

17

WHEEL BEARING; 40 MM X 74 MM X 40 MM

3514635

$73,49 Unit Price incl. VAT

18

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

19

BOLT

7518566

$13,64 Unit Price incl. VAT

20

PIVOT SHAFT

5137593

$12,59 Unit Price incl. VAT

21

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

22

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

23

SPACER .625 X .407 X .375

5334945

$7,34 Unit Price incl. VAT

24

ZERK FITTING

7080510

$10,49 Unit Price incl. VAT

25

BOLT-M10X1.25X100 HXFLG OLV D

7518610

$41,99 Unit Price incl. VAT

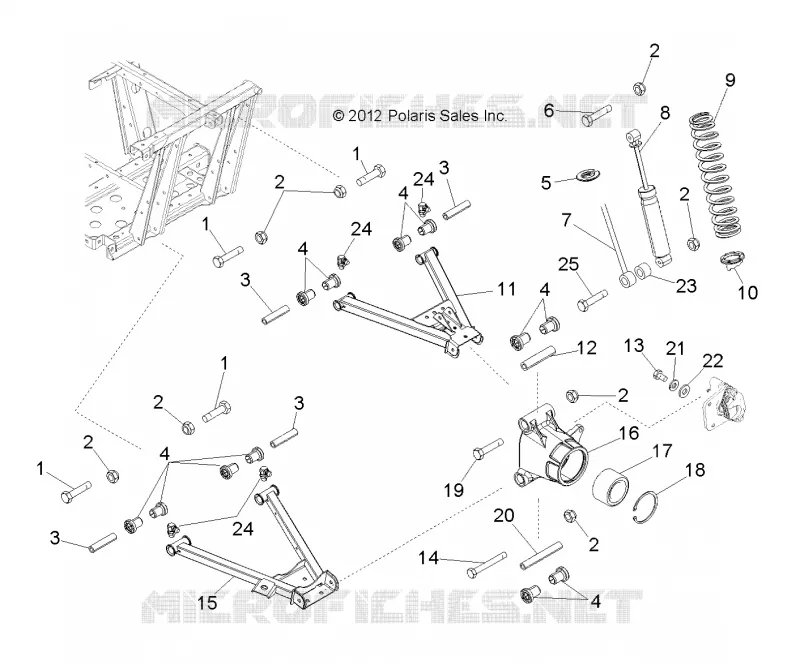

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
