Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
THROTTLE PEDAL
by
CAM CHAIN AND SPROCKET
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
16
16
17
18
19
20
21
1
BOOT-ENGINE INTAKE
5414972
9999999
Not Available
2
AIR INTAKE BOX
5450174
$257,24 Unit Price incl. VAT
3
AIRBOX CLIP
7081707
$9,44 Unit Price incl. VAT
4
COMPRESSION SHAFT LIMITER; 34.4 MM
5138987
$31,49 Unit Price incl. VAT
5
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
6
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
7
PLUG-1 INCH
5414780
$7,34 Unit Price incl. VAT
8
AIRBOX COVER
5450175
$47,24 Unit Price incl. VAT
9
AIR BOX COVER SEAL
5814106
$20,99 Unit Price incl. VAT
10
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
11
AIR FILTER
7082037
$48,71 Unit Price incl. VAT
12
AIRBOX INTAKE DUCT
5414503
$115,49 Unit Price incl. VAT
13
HOSE-VENT INTAKE
5415280
9999999
Not Available
14
HOSE-ENGINE INLET
5415284
9999999
Not Available
15
ASM-BREATHER VALVE
7052626
9999999
Not Available
16
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
17
CLAMP SPRINGBAND
7081693
$8,39 Unit Price incl. VAT
18
CLAMP-HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
19
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
20
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
21
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

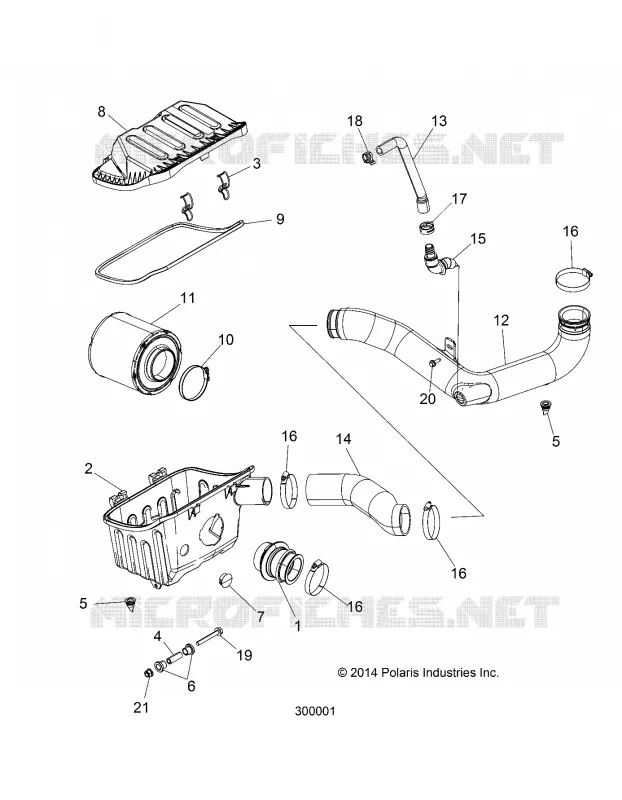

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
