Parts Catalog
FLATEBED SIDES
5
Parts Diagram
Parts Catalog
DUMP LEVER
by
FLOOR FENDERS
FLATEBED SIDES
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
2
3
4
5
1
PIN-CLEVIS DETENT
7662190
9999999
Not Available
2
TAILGATE LATCH ASSEMBLY; LEFT
1018849
$83,99 Unit Price incl. VAT
3
TAILGATE LATCH ASSEMBLY; RIGHT
1018850
$83,99 Unit Price incl. VAT
4
WELD-SIDE BOX LH BLK
1020319458
Not Available
5
WELD-SIDE BOX RH BLK
1020320458
Not Available
6
BRKT-HOOK BLK
5253074458
Not Available
7
WELD-TAIL GATE;BLK
1020321458
Not Available
8
TAILGATE CABLE
7082076
$73,49 Unit Price incl. VAT
9
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
10
SCR-TXTH-M6X1.0X25 RIE;SHDR
7519942
$9,44 Unit Price incl. VAT
11
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
12
SPACER-.265IDX.375ODX.105
5136905
$14,69 Unit Price incl. VAT
13
WELD-TUBE ADAPTER BLK
1020354458
Not Available
14
BRKT-BED TIEDOWN BLK
5261145458
Not Available
15
SEATBELT WASHER; RUBBER
5813829
$2,09 Unit Price incl. VAT
16
HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM
7519905
$4,19 Unit Price incl. VAT

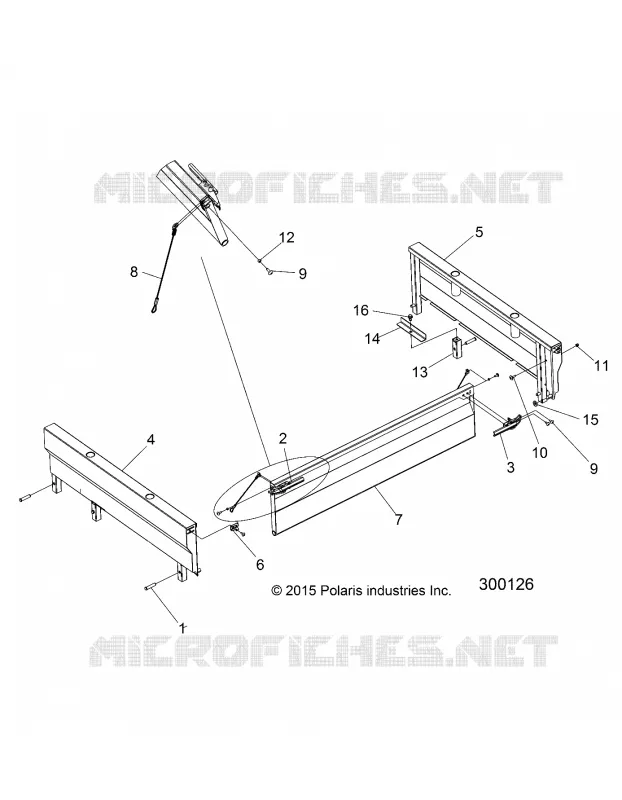

Find the detailed FLATEBED SIDES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
