1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 EFI EPS
4
Parts Catalog
REAR CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
CABIN SIDE PANELS
by
REAR RACK
REAR CAB, SEAT AND FOOTWELLS
1
1
1
1
2
2
2
3
4
5
6
7
7
8
8
8
9
10
11
12
1
2
3
4
5
6
7
7
7
7
7
8
8
8
9
10
11
11
12
1
ASM-SEAT BLK
2685519070
Not Available
1
SEAT COVER ASSEMBLY; WHITE DECAL
2685520
9999999
Not Available
1
SEAT ASSEMBLY; GLOSS BLACK
2685811070
Not Available
1
ASM-COVER SEAT GLD POL 2685076
2685812
9999999
Not Available
2
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
3
FOOTWELL; LEFT SIDE; GLOSS BLACK
5450523070
Not Available
4
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5450524070
Not Available
5
SCREW
7517230
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
8
CAB ASSEMBLY; REAR; RIGHT; BRIGHT WHITE
2635180133
Not Available
8
CAB ASSEMBLY; REAR; POLARIS PURSUIT CAMO
2635227587
Not Available
8
REAR CAB ASSEMBLY; SB GRN MTLC
2635180498
Not Available
9
BUMPER-SEAT
5412982
9999999
Not Available
10
SEAT LATCH GROMMET
5413691
$6,29 Unit Price incl. VAT
11
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available
12
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT

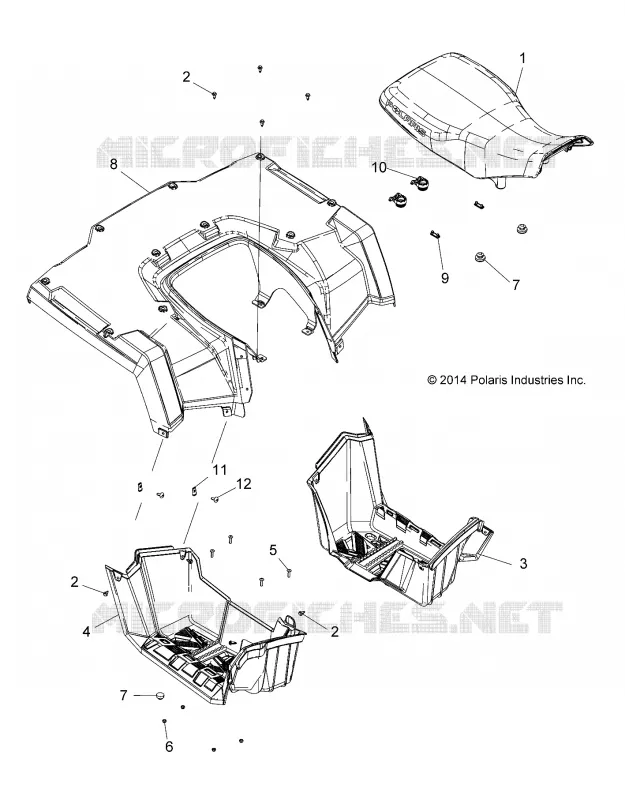

Find the detailed REAR CAB, SEAT AND FOOTWELLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
