1
BASIC EBS DRIVE CTCH ASM
1323063
$1 070,99 Unit Price incl. VAT
2
ONEWAY CLUTCH ASSEMBLY
1521172
$89,24 Unit Price incl. VAT
3
DU BUSHING; 1.75
3514492
$54,59 Unit Price incl. VAT
4
SPACER-CLUTCH LIMITER .350
5450770
$20,99 Unit Price incl. VAT
5
CLUTCH BUTTON
5439254
$14,69 Unit Price incl. VAT
6
WASHER CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
7
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
8
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
9
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
10
SPRING CLUTCH 35-240
7043594
$89,24 Unit Price incl. VAT
11
BEARING COVER; .75 IN
3514684
$27,29 Unit Price incl. VAT
12
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
13
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
14
CLUTCH WEIGHT
5632409
$62,99 Unit Price incl. VAT
15
BUSHING
5430261
$13,64 Unit Price incl. VAT
16
WASHER
5210748
$7,34 Unit Price incl. VAT
17
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
18
ATV CLUTCH BOLT; 7/16 X 20 X 8
7519287
$52,49 Unit Price incl. VAT
19
CLUTCH WASHER
7556335
$11,54 Unit Price incl. VAT
20
CLUTCH SPACER
5633037
$68,24 Unit Price incl. VAT

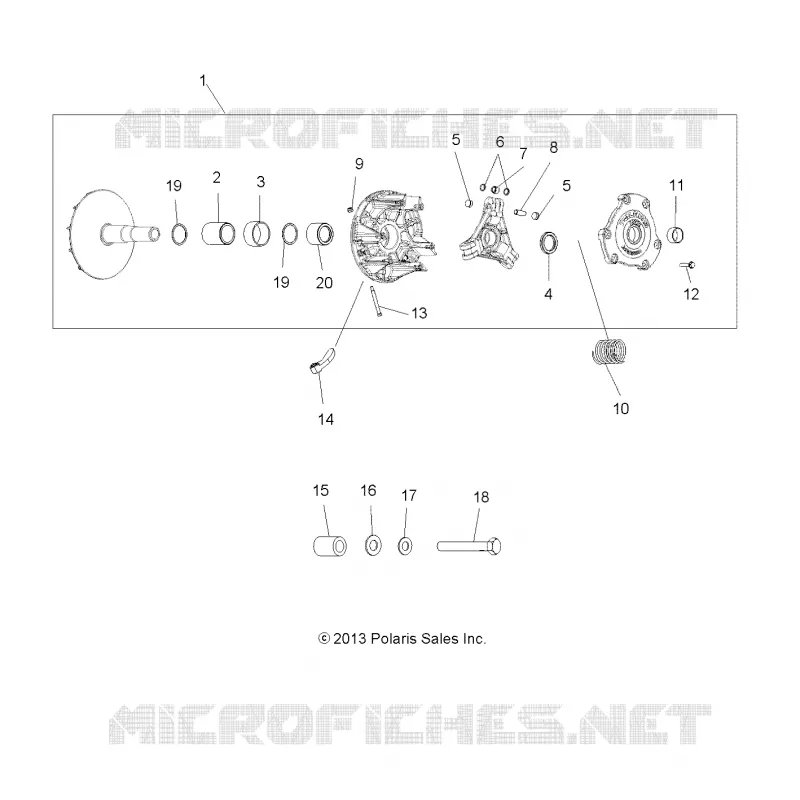

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
