DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RANGER DIESEL HD EPS from 2024

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

SEAL-OUTER CLUTCH COVER

5417715

$40,94 Unit Price incl. VAT

2

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$2,09 Unit Price incl. VAT

3

SCREEN BRACKET; BELT

5264258

$52,49 Unit Price incl. VAT

4

COVER-CLUTCH INNER MACH

5144005

$362,24 Unit Price incl. VAT

5

DECAL-WARN CLUTCH COVER EU

7181427

Not Available

6

DUCT-CLUTCH INLET

5418049

$167,99 Unit Price incl. VAT

7

DUCT-CLUTCH OUTLET

5418050

$167,99 Unit Price incl. VAT

8

HOSE ADAPTOR BOOT

5454194

$47,24 Unit Price incl. VAT

9

INLET CLUTCH DUCT SEAL PLATE

5633909

$68,24 Unit Price incl. VAT

10

K-CVR CLUTCH OTR RGR XP INTL

2207611

9999999

Not Available

11

O-RING 0.489 X 0.629 X 0.070

5416606

$6,81 Unit Price incl. VAT

12

DRAIN PLUG; 9/16-18

5454915

$10,49 Unit Price incl. VAT

13

O-RING-2.25X2.625X.21 NBR BARB

5417662

$15,74 Unit Price incl. VAT

14

MOUNT-OUTLET DUCT

5639162

$47,24 Unit Price incl. VAT

15

DECAL-BELT CAUTION/CHECK

7177469

Not Available

16

O-RING SEAL; .128 X 7.895

5415647

$3,14 Unit Price incl. VAT

17

CLUTCH INLET TO TUNNEL HOSE

5416170

$115,49 Unit Price incl. VAT

18

CLAMP-HOSE SLOTTED;75-90 DIA

7082314

$19,94 Unit Price incl. VAT

19

CLAMP-HOSE SLOTTED;89-100 DIA

7081969

$19,94 Unit Price incl. VAT

20

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

21

WSHR FLAT INN DIA 10.5 OUT DIA

7556155

$9,44 Unit Price incl. VAT

22

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$25,19 Unit Price incl. VAT

23

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$14,69 Unit Price incl. VAT

24

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$11,54 Unit Price incl. VAT

25

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

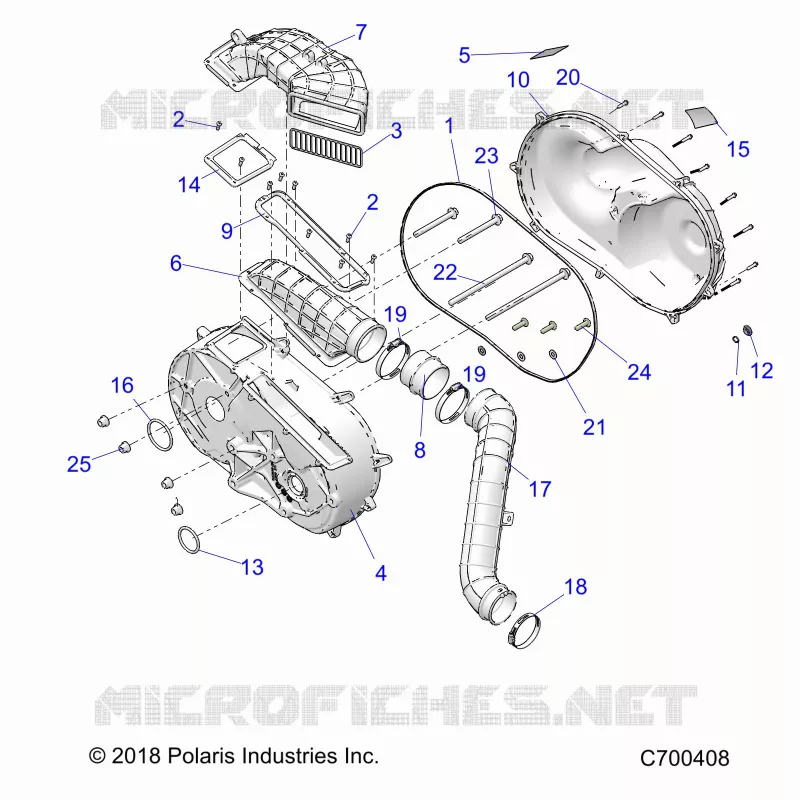

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
