MULTI FUNCTION GAUGE
5
Parts Diagram
Parts Catalog
MAIN WIRE HARNESS
by
SWITCHES, SENSORS AND COMPONENTS
MULTI FUNCTION GAUGE
1
2
3
4
5
6
7
1
GAUGE ASSEMBLY
3280757
3286993
$782,24 Unit Price incl. VAT
2
BEZEL-GAUGE CPI B1
5452364
5457170
$47,24 Unit Price incl. VAT
3
DIGITAL GAUGE GASKET
5415589
$20,99 Unit Price incl. VAT
4
DISPLAY-DIG 4.3 CLR NOVID PRG
3280758
9999999
Not Available
5
MOUNT-RUBBER MFUNC DISPLAY
5415138
$31,49 Unit Price incl. VAT
6
GPS BRACKET
5262033
$26,24 Unit Price incl. VAT
7
HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM
7519145
$7,34 Unit Price incl. VAT

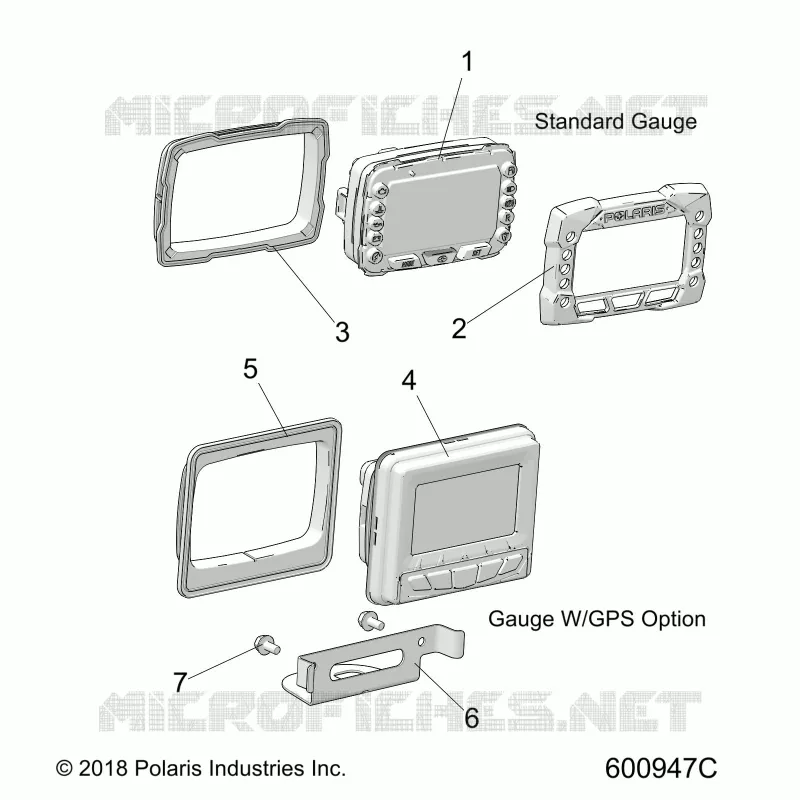

Find the detailed MULTI FUNCTION GAUGE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
